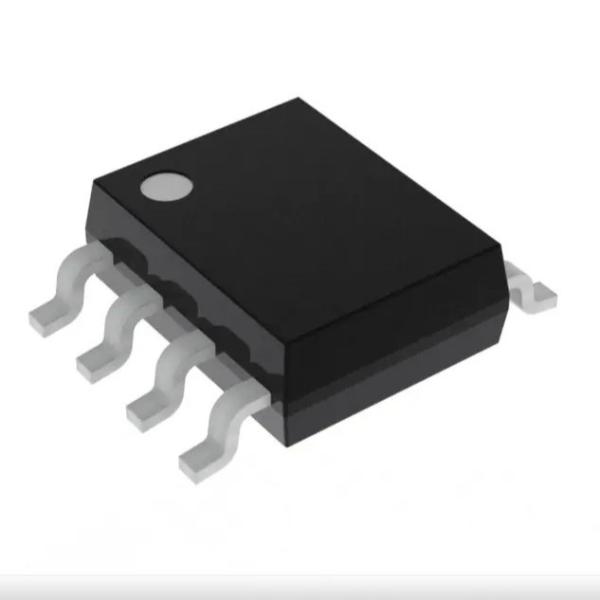

MLX90316 melexis Rotary Position Sensor IC MLX90316KDC-BCG-000 MLX90316KDC-BDG-100-RE with SPI OUTPUT

MLX90316 melexis Rotary Position Sensor IC MLX90316KDC-BCG-000 or MLX90316KDC-BDG-100-RE with SPI OUTPUT

Features and Benefits:

Absolute Rotary Position Sensor IC

Simple & Robust Magnetic Design

Tria⊗is® Hall Technology

Programmable Angular Range up to 360 Degrees

Programmable Linear Transfer Characteristic

Selectable Analog (Ratiometric), PWM, Serial Protocol

12 bit Angular Resolution - 10 bit Angular Thermal Accuracy

40 bit ID Number

Single Die – SOIC-8 Package RoHS Compliant

Dual Die (Full Redundant) – TSSOP-16 Package RoHS Compliant

Applications:

Absolute Rotary Position Sensor

Steering Wheel Position Sensor

Pedal Position Sensor

Motor-shaft Position Sensor

Throttle Position Sensor

Float-Level Sensor

Ride Height Position Sensor

Non-Contacting Potentiometer

Description:

The MLX90316 is a Tria⊗is® Rotary Position Sensor providing the absolute angular position of a small dipole magnet rotating above the device surface (end-of-shaft magnet). Thanks to an Integrated Magneto-Concentrator (IMC) on its surface, the monolithic device senses, in a contactless fashion, the horizontal component of the applied magnetic flux density. This unique sensing principle applied to a rotary position sensor results into an impressive robustness of the angular position over the mechanical (airgap, off-axis) tolerances. The rotation of this horizontal component is sensed over a wide range (up to 360 Deg. - complete revolution) and processed by the onchip DSP (Digital Signal Processing) to ultimately report the absolute angular position of the magnet either as a ratiometric analog output or as PWM (Pulse-Width Modulation) signal or as a 14- bit data accessible through a 3-pin SPI (serial interface) channel. The output transfer characteristic is fully programmable (e.g. offset, gain, clamping levels, linearity, thermal drift, filtering, range...) to match any specific requirement through end-of-line calibration. The Melexis programming unit PTC-04 communicates and calibrates the device exclusively through the connector terminals (VDDVSS-OUT).

1. Ordering Information

Legend:

Glossary of Terms
