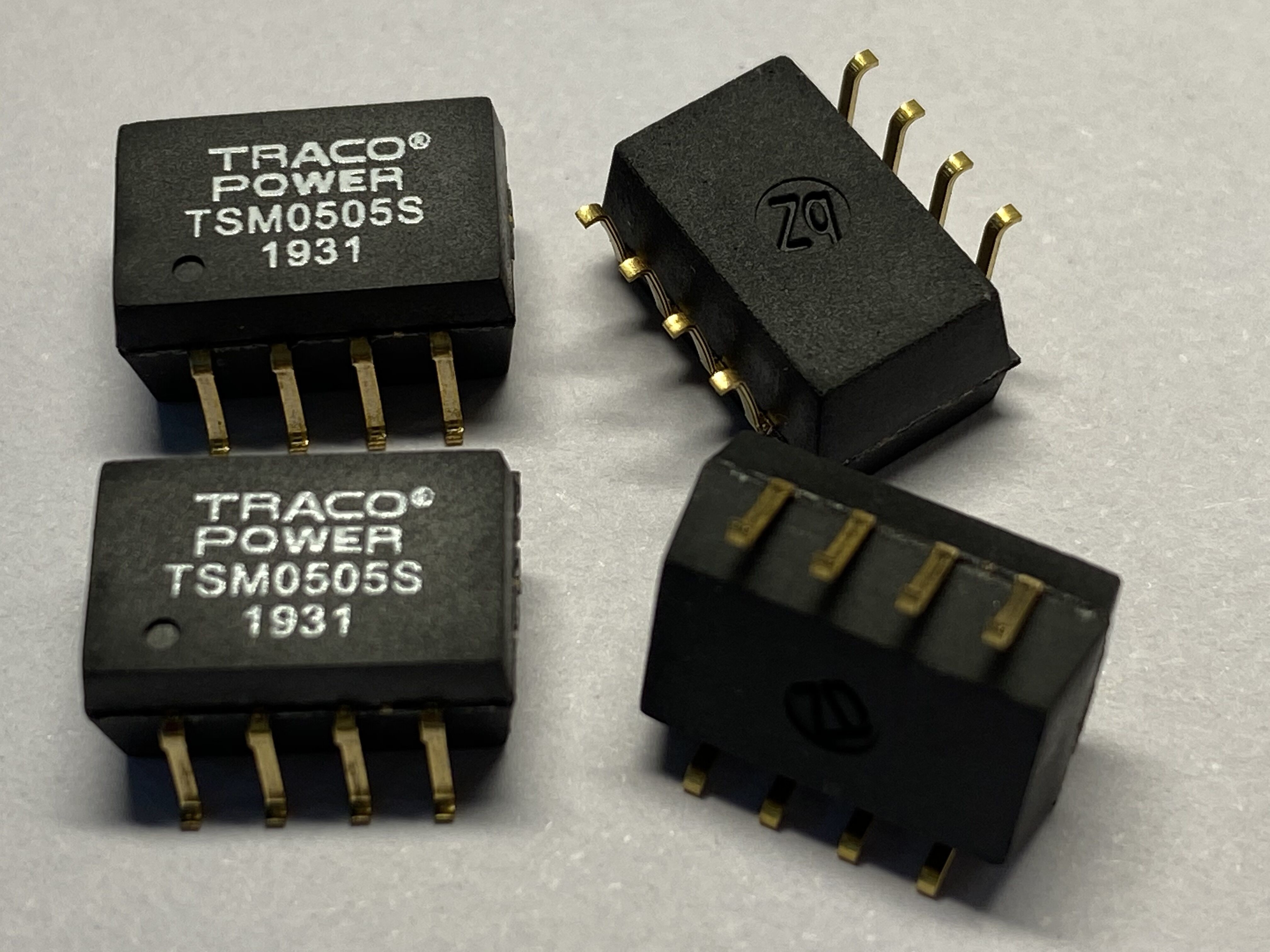

    TSM0505S Traco Power DC DC Converter Board Mount PMIC Chip

    Ask Lasest Price
    Brand Name : Traco Power
    Model Number : TSM0505S
    Certification : ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 50000PCS
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    TSM0505S Traco Power DC DC Converter Board Mount PMIC Chip

    TSM0505S Traco Power TSM PMIC Isolated Module DC DC Converter Board Mount electronic components power module

    TSM0505S Traco Power TSM PMIC Isolated Module DC DC Converter Board Mount power module


    TSM series PMIC Isolated Module DC DC Converter Board Mount power module Specification :

    The TSM series are isolated DC/DC converters with 1W output power implemented in a molded plastic package with a pin accuracy suitable for automated SMDproduction. The devices can be soldered without any problems in a high temperature lead free solder process. With their small footprint these converters are the economical solution for point of load power conversion, ground loop elimination, noise reduction and digital interface applications.


    Category
    Electronic components Power Supplies
    Family
    DC DC Converters Board Mount PMIC Chip
    Mfr
    Traco Power
    Series
    TSM (1W)
    Package
    Tube
    Part Status
    Active
    Type
    Isolated Module
    Number of Outputs
    1
    Voltage - Input (Min)
    4.5V
    Voltage - Input (Max)
    5.5V
    Voltage - Output 1
    5V
    Current - Output (Max)
    200mA
    Power (Watts)
    1 W
    Voltage - Isolation
    1 kV
    Applications
    ITE (Commercial)
    Features
    SCP
    Operating Temperature
    -40°C ~ 85°C
    Efficiency
    80%
    Mounting Type
    Surface Mount
    Package / Case
    14-SMD Module, 8 Leads
    Size / Dimension
    0.50" L x 0.31" W x 0.32" H (12.7mm x 8.0mm x 8.1mm)
    Base Product Number
    TSM 0505
    DatasheetTSM0505_DATA.pdf

    DC/DC Converters TSM Series, 1 Watt Traco Power TSM PMIC Isolated power Module details:

    Features

    ◆ SMD package (SOIC-14/18)

    ◆ Construction in lead frame technology

    ◆ Isolated single and dual output

    ◆ I/O isolation 1‘000 VDC

    ◆ High efficiency

    ◆ Operating temperature –40°C to +85°C

    ◆ Reflow solder temperature up to 245°C

    ◆ High accuracy of Pin co-planarity

    ◆ Available in tape and reel package

    ◆ Lead free design, RoHS compliant


    Related PMIC Power management chip module numbers:

    Model Number Input voltage Output voltage Output current max. Efficiency typ.
    TSM0505S 5 VDC 200 mA 80 %
    TSM0509S 9 VDC 110 mA 78 %
    TSM0512S 12 VDC 80 mA 80 %
    TSM0515S 5 VDC ±10% 15 VDC 65 mA 81 %
    TSM0505D ±5 VDC ±100 mA 75 %
    TSM0512D ±12 VDC ±40 mA 79 %
    TSM0515D ±15 VDC ±30 mA 79 %
    TSM1205S 5 VDC 200 mA 81 %
    TSM1209S 9 VDC 110 mA 78 %
    TSM1212S 12 VDC 80 mA 81 %
    TSM1215S 12 VDC ±10% 15 VDC 65 mA 82 %
    TSM1205D ±5 VDC ±100 mA 75 %
    TSM1212D ±12 VDC ±40 mA 80 %
    TSM1215D ±15 VDC ±30 mA 80 %
    TSM2405S 5 VDC 200 mA 81 %
    TSM2409S 9 VDC 110 mA 78 %
    TSM2412S 12 VDC 80 mA 81 %
    TSM2415S 24 VDC ±10% 15 VDC 65 mA 82 %
    TSM2405D ±5 VDC ±100 mA 75 %
    TSM2412D ±12 VDC ±40 mA 80 %
    TSM2415D ±15 VDC ±30 mA 80 %

    TSM0505S Traco Power DC DC Converter Board Mount PMIC ChipTSM0505S Traco Power DC DC Converter Board Mount PMIC Chip
