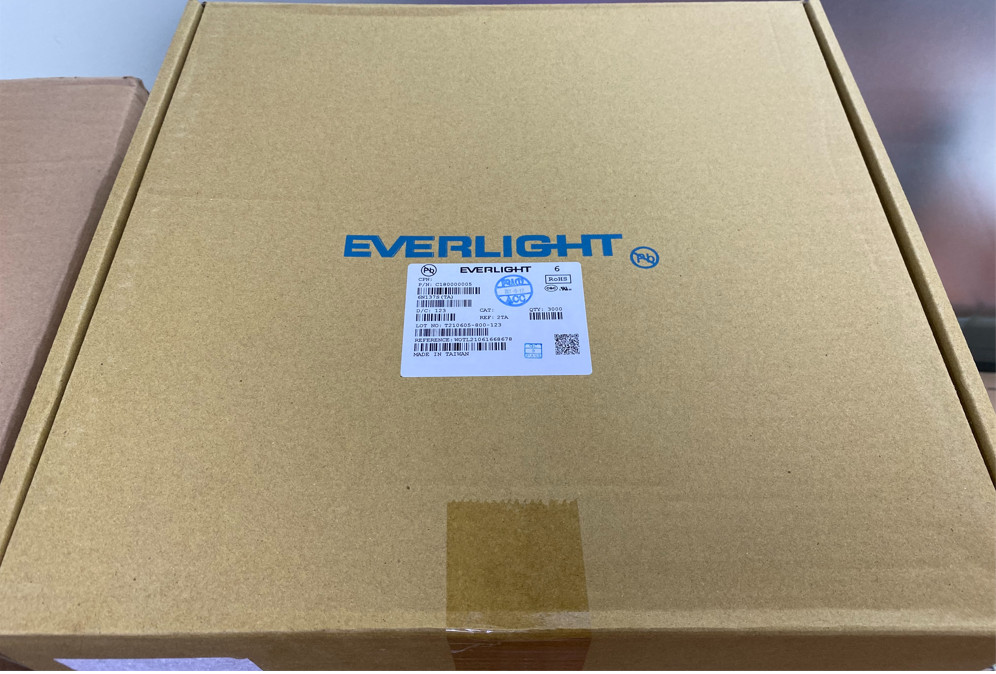

    Brand Name : EVERLIGHT
    Model Number : 6N137S
    Certification : ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 5000000pcs
    Delivery Time : 3-8DAYS
    • Product Details
    • Company Profile

    6N137 EL26XX Optoelectronic Coupler Logic Output Optoisolator

    6N137 EL26XX series Optoelectronic Coupler (PHOTOCOUPLER) Logic Output Optoisolator 8-SMD/DIP8


    8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Description:

    The 6N137, EL2601 and EL2611 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. It is packaged in a 8-pin DIP package and available in wide-lead spacing and SMD options.


    Specifications :

    Category
    Isolators-Optoelectronic Coupler (PHOTOCOUPLER)
    Family
    Optoisolators - Logic Output
    Mfr
    Lite-On Inc./EVERLIGHT
    Base part number
    6n137
    Package
    Tube/REEL
    Part Status
    Active
    Number of Channels
    1
    Inputs - Side 1/Side 2
    1/0
    Voltage - Isolation
    5000Vrms
    Common Mode Transient Immunity (Min)
    10kV/µs
    Input Type
    DC
    Output Type
    Open Collector
    Current - Output / Channel
    50 mA
    Data Rate
    15MBd
    Propagation Delay tpLH / tpHL (Max)
    75ns, 75ns
    Rise / Fall Time (Typ)
    22ns, 6.9ns
    Voltage - Forward (Vf) (Typ)
    1.38V
    Current - DC Forward (If) (Max)
    20mA
    Voltage - Supply
    7V
    Operating Temperature
    -40°C ~ 85°C
    Mounting Type
    Surface Mount
    Package / Case
    8-SMD, Gull Wing
    Supplier Device Package
    8-SMD

    6N137 EL26XX series Optoelectronic Coupler (PHOTOCOUPLER) Applications:

    Ground loop elimination

    LSTTL to TTL, LSTTL or 5 volt CMOS

    Line receiver, data transmission

    Data multiplexing

    Switching power supplies

    Pulse transformer replacement

    Computer peripheral interface • High speed logic ground isolation


    6N137 EL26XX series Optoelectronic Coupler (PHOTOCOUPLER) Features:

    High speed 10Mbit/s

    10kV/μs min. common mode transient immunity (EL2611)

    Guaranteed performance from -40 to 85℃

    Logic gate output

    High isolation voltage between input and output (Viso=5000 V rms )

    Pb free and RoHS compliant.

    UL and cUL approved(No. E214129)

    VDE approved (No. 132249)

    SEMKO approved

    NEMKO approved

    DEMKO approved

    FIMKO approved


    Preheat Temperature min (Tsmin) 150 °C

    Temperature max (Tsmax) 200°C

    Time (Tsmin to Tsmax) (ts) 60-120

    seconds Average ramp-up rate (Tsmax to Tp) 3 °C/

    second max Other Liquidus Temperature (TL) 217 °C

    Time above Liquidus Temperature (t L) 60-100 sec

    Peak Temperature (TP) 260°C

    Time within 5 °C of Actual Peak Temperature: TP - 5°C 30 s Ramp- Down Rate from Peak

    Temperature 6°C /second max. Time 25°C to peak temperature 8 minutes max. Reflow times 3 times


    Environmental & Export Classifications
    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)1 (Unlimited)
    ECCNEAR99
    HTSUS8541.40.8000

    Detailed Description Logic Output Optoisolator 15MBd Open Collector 5000Vrms 1 Channel 10kV/µs CMTI 8-SMD
