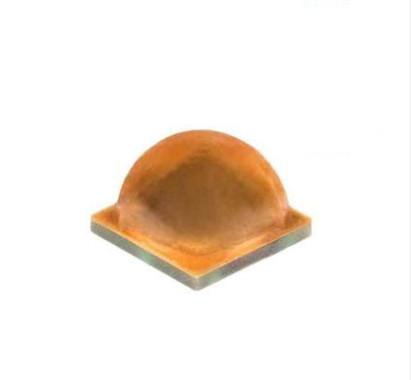

XHP50.2 LEDs Lighting Cree LED XHP50B-00-0000-0D0UG230G XHP50B-00-0000-0D0UH240H

XHP50.2 LEDs Cree LED XHP50B-00-0000-0D0UG230G

Description:

The XLamp® XHP50.2 LED is the next generation of Extreme High Power LEDs that delivers the lowest system cost through the best lumen density, reliability and color consistency. Built on Cree LED’s latest high-power LED technology,

the XHP50.2 LED improves the lumen density, voltage characteristics, reliability and optical performance of the XHP50 LED

in the same 5.0 mm x 5.0 mm footprint.

The new XHP50.2 LED provides an easy drop-in upgrade to achieve higher system LPW for lighting manufacturers with existing

XHP50 designs, eliminating redesign costs.

Its unparalleled lumen density and longer lifetime at higher operating temperatures also enables new and innovative lighting

designs at lower system costs.

Features:

Available in white, configurable to 3 V, 6 V or 12 V by PCB layout

• Available in 5-step EasyWhite® bins at 3000 K to 5000 K CCT, 3-step EasyWhite bins at 2700 K to 5000 K and 2-step EasyWhite bins at 2700 K to 4000 K CCT

• Available in ANSI white bins at 3000 K to 7000 K CCT

• Available in standard, 70-, 80-, and 90-minimum CRI options

• Broadcast color option at 5700 K provides maximum performance for TV events that require extremely high TLCI

• Binned at 85 °C • Maximum drive current: 6000 mA (3 V), 3000 mA (6 V), 1500 mA (12 V) • Low thermal resistance: 1.2 °C/W

• Wide viewing angle: 120°

• Unlimited floor life at ≤ 30 ºC/85% RH

• Reflow solderable - JEDEC J‑STD‑020C

• RoHS and REACh compliant

• UL® recognized component (E349212)

Specifications :

XLamp® XHP50.2 Series Cree LED Lighting numbers:

About Cree LED

The former LED products group of Cree is now Cree LED and a part of SMART Global Holdings, Inc.

Cree LED will continue delivering best-in-class technology and breakthrough solutions for our focus applications:

High Power General Lighting, Automotive, Video Screens and Specialty Lighting. Cree LED offers the industry’s

broadest portfolio of application-optimized LEDs that lead the industry in lumen density, intensity, efficacy,

optical control and reliability, backed by expert design assistance and superior sales support.

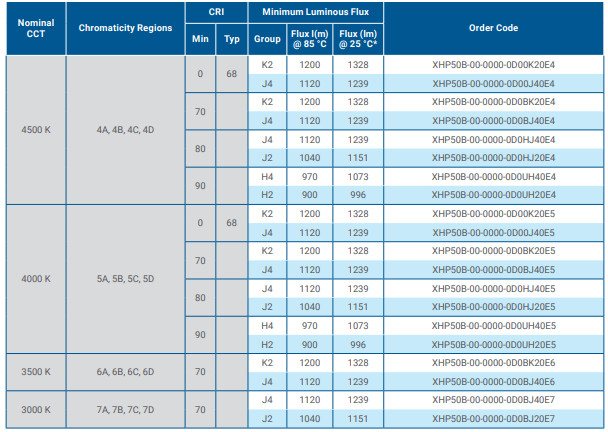

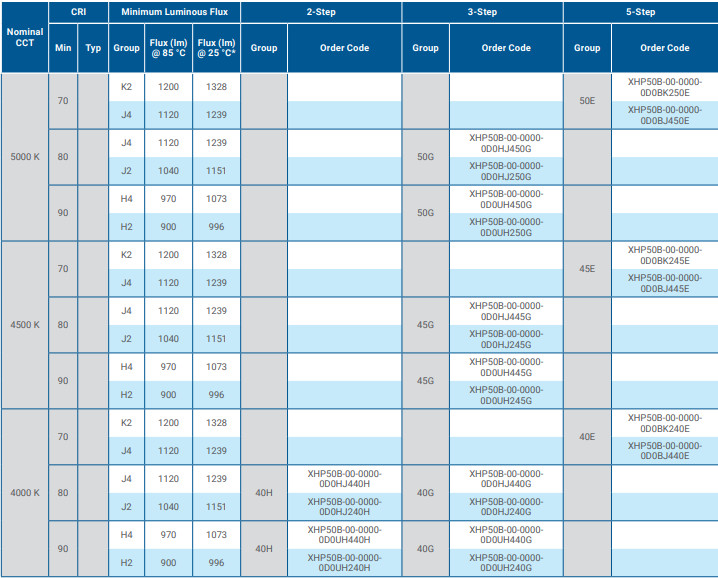

FLUX CHARACTERISTICS, EASYWHITE® ORDER CODES AND BINS

The following table provides order codes for XLamp XHP50.2 LEDs. For a complete description of how the flux and chromaticity groups are reflected in the bin code and order code nomenclature, please see the Bin and Order Code Formats section .

Binning condition: TJ = 85 °C; 12 V, IF = 700 mA Reference condition: TJ = 85 °C; 6 V, IF = 1400 mA
