    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    Ask Lasest Price
    Brand Name : OEM
    Model Number : KCX_BT_EMITTER Audio Module Board
    Certification : ROHS
    Price : US$4.25
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 5000pcs
    Delivery Time : 5-14days
    • Product Details
    • Company Profile

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER Audio Module Board 4.1 Stereo Audio GFSK Transceiver Transmitter Wireless Speaker Headphones

    1.Introduction:

    KCX_BT_EMITTER module is a Blue-tooth audio transmitter module that integrates computer USB sound card to Blue-tooth transmission and line audio input and launch. It adopts Blue-tooth 4.1 technology to greatly ensure the quality and stability of audio transmission. This product can be used for most of the products. Blue-tooth transmitter function for desktop computers, notebook computers, TVs, projectors, game consoles, IPOD, CD players, MP3s, etc., to transmit audio signals to Blue-tooth audio receivers such as Bluetooth headsets or Bluetooth speakers to form a wireless audio transmission system. Let your life truly enter the wireless era!


    2.Application:

    2.1>.Wireless speaker
    2.2>.Wireless audio
    2.3>.Wireless headphones


    3.Features:

    3.1>.Easy to use
    3.2>.Blue-tooth 4.1 technology, strong versatility
    3.3>.Intuitive LED indication

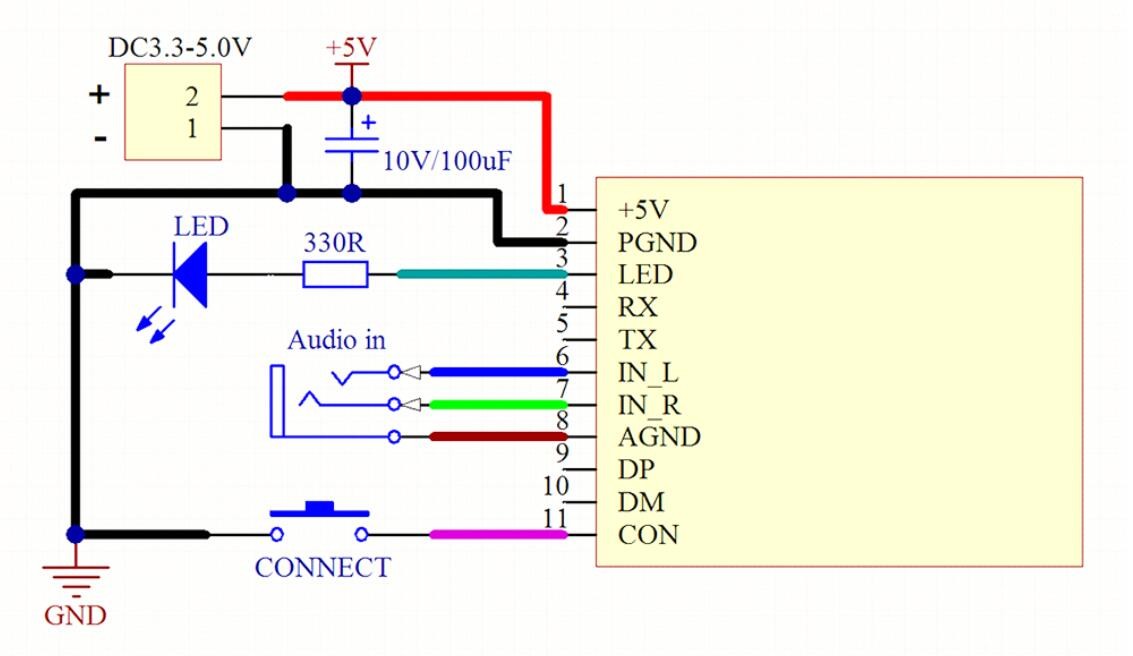

    3.4>.Line input stereo

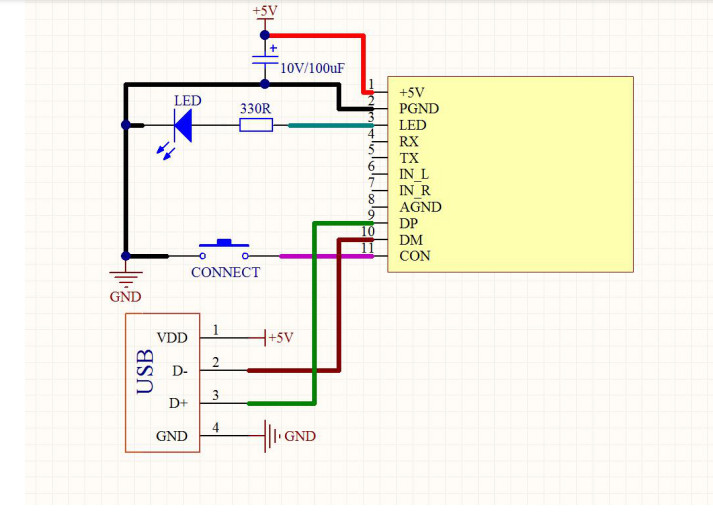

    3.5>.A USB data cable is connected to the computer and enumerated into a USB sound card to launch
    3.6>.Wireless transmission distance >= 10 meters
    3.7>.Perfectly compatible with all Blue-tooth audio receiver boards in this store

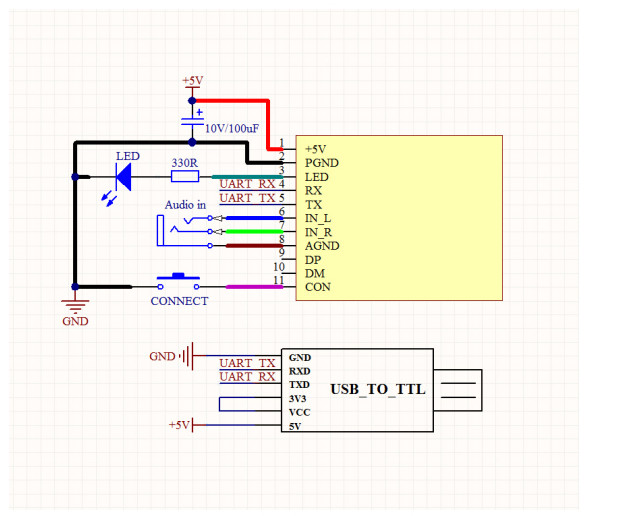

    3.8>.The reserved serial communication port can be customized to realize the connection of the specified device name, specify the MAC address connection, search for the Bluetooth device name, MAC address, get the connection status, disconnect, etc., and configure the information to be powered off.
    3.9>.Work voltage:5V


    CategoryDevelopment Boards, Kits, Programmers
    FamilyAudio Module Board
    Product NameKCX_BT_EMITTER
    Board TypeEvaluation Platform
    Description4.1 Stereo Audio GFSK Transceiver Transmitter Wireless Speaker Headphones
    After upgraded to KCX-BT-EMITTER V1.4It can be completely replaced with an external antenna
    Utilized IC / PartACI813AP1E13
    Mounting TypeFixed

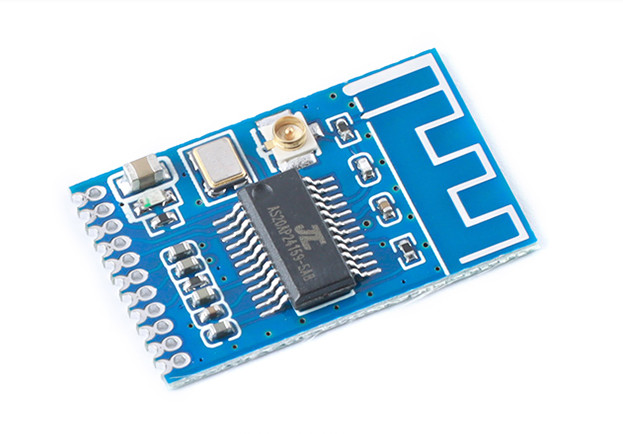

    KCX_BT_EMITTER V1.1 images (It has been upgraed to be KCX-BT-EMITTER V1.4 )

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module


    At present,KCX_BT_EMITTERV1.1 has been upgraded to be KCX_BT_EMITTERV1.4 as follows:

    KCX_BT_EMITTERV1.4 can be completely replaced KCX_BT_EMITTERV1.1 with an external antenna.

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module

    KCX_BT_EMITTER GFSK Transceiver Bluetooth Audio Transmitter Module
