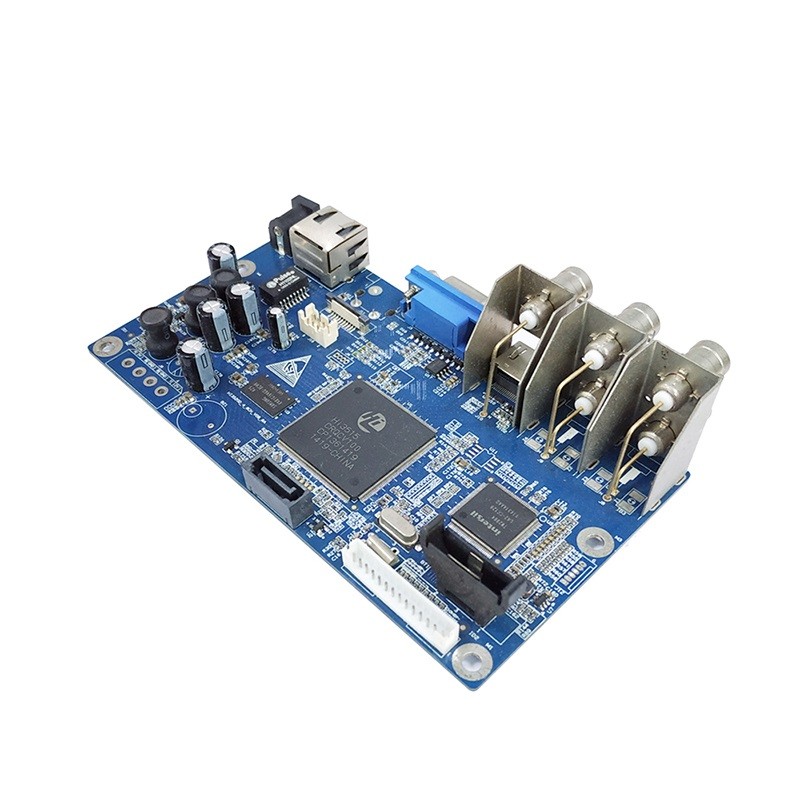

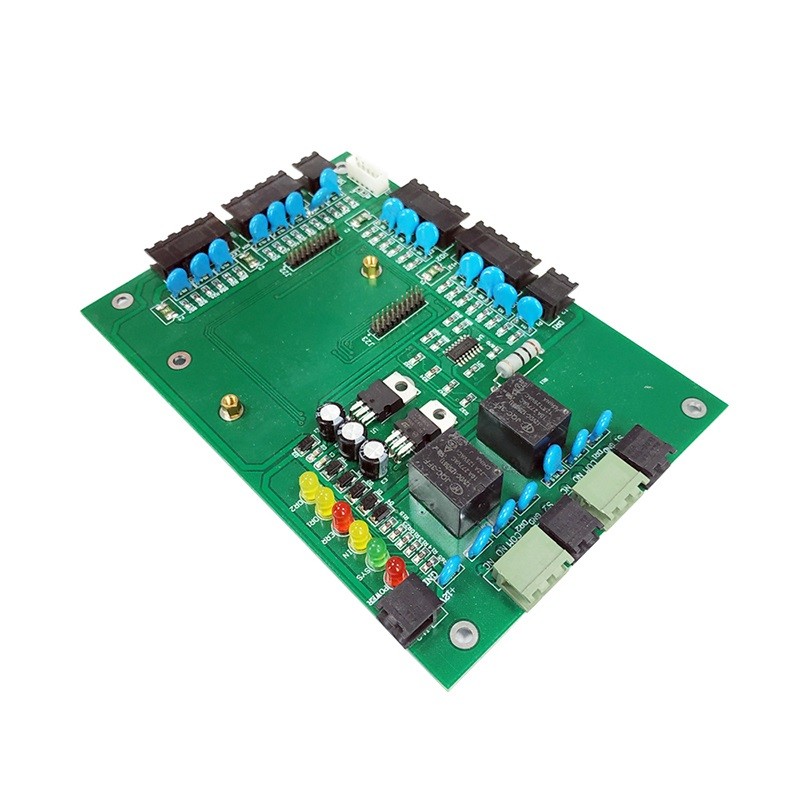

    CEM-1 CEM-3 Electronic Circuit Board Prototype PCB Manufacturing And Assembly

    Ask Lasest Price
    Brand Name : Customized
    Model Number : Customized PCB
    Price : negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs/month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    CEM-1 CEM-3 Electronic Circuit Board Prototype PCB Manufacturing And Assembly

    Customised PCB Electronic Circuit Board Prototype Pcb Assembly Pcba Board Manufacturer


    Product Description


    Specification


    1.Detailed Specification of PCB Board Manufacturing


    1Layer1-30 layer
    2Material

    FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum


    3Board thickness0.4mm-4mm
    4Max.finished board side500mm*500mm
    5Min.drilled hole size0.25mm
    6Min.line width0.10mm(4mil)
    7Min.line spaceing0.10mm(4mil)
    8Surface finish/treatmentHASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating
    9Copper thickness0.5-4.0oz
    10Solder mask colorgreen/black/white/red/blue/yellow
    11Inner packingVacuum packing,Plastic bag
    12Outer packingStandard carton packing
    13Hole tolerancePTH:±0.076,NTPH:±0.05
    14CertificateISO9001,ISO14001,ROHS,CQC
    15Profiling PunchingRouting,V-CUT,Beveling
    16Assembly ServiceProviding OEM service to all sorts of printed circuit board assembly

    2.Detailed Terms for PCB Assembly

    Technical RequirementProfessional Surface-mounting and Through-hole soldering Technology
    Various sizes like 1206,0805,0603 components SMT technology
    ICT(In Circuit Test),FCT(Functional Circuit Test) technology
    PCB Assembly With CE,FCC,Rohs Approval
    Nitrogen gas reflow soldering technology for SMT
    High Standard SMT&Solder Assembly Line
    High density interconnected board placement technology capacity
    Quote&Production RequirementGerber File or PCB File for Bare PCB Board Fabrication
    Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly
    To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.
    Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate
    OEM/ODM/EMS ServicesPCBA, PCB assembly: SMT & PTH & BGA
    PCBA and enclosure design
    Components sourcing and purchasing
    Quick prototyping
    Plastic injection molding
    Metal sheet stamping
    Final assembly
    Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
    Custom clearance for material importing and product exporting
    Other PCB Assembly EquipmentsSMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4
    Reflow Oven: FolunGwin FL-RX860
    Wave Soldering Machine: FolunGwin ADS300
    Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service
    Fully Automatic SMT Stencil Printer: FolunGwin Win-5

    3.Detailed Normal Lead time
    PCB Lead time (workday(s)) Normally
    Single, Double-sided4 layer6 layerOver 8 layerHDI

    Sample Lead time (Normal)

    5-66-77-810-1210-12
    Sample Lead time (Faster)48-72 hours566-712
    Mass production lead time7-910-1213-151620

    PCB Assembly Lead time:


    Sample Lead time


    PCB Fab+Components preparation +PCBA=15 workdays


    Mass production lead time

    PCB Fab+Components preparation +PCBA=21workdays

    Quote Requirement:

    Production Requirement for pcb assembly:

    1.Gerber Files (Eagle and PCB File are available).

    2.BOM list (Bill of material) for assembly.

    3.Clear pictures of PCBA or PCBA samples to us.

    4.Pick N Place file.

    5.Test procedure for PCBA.


    FQA :


    Customer: Are you a factory ?
    Angel-Tech: Yes, we are a professiongal manufacturer factory who offer customized PCB,SMT and Electronic Components one stop service.


    Customer: which payment terms do you accept?
    Angel-Tech: we usually accept the following payment terms T/T, western union, Paypal and so on. you can also tell us about your payment way !


    Customer: Can you produce the goods as customer design?
    Angel-Tech: Sure! Welcome to send us the design or sample, we will calculated the cost and unit price for you as soon as possible.


    Customer: How about the products packing?
    Angel-Tech: Flexible packing according to the specific requirements of the clients.
