    1.6MM 1oz Impedance PCB Manufacturing Service

    Impedance PCB(Printed Circuit Board) for Electrical box with pcb manufacturing and assembly


    Impedance PCB(Printed Circuit Board) for Electrical box pcb manufacturing service


    Impedance PCB(Printed Circuit Board) for Electrical box Specification:

    Base materialFR4Layer(s)6
    Permittivity4.3Thickness1.6mm
    Outer copper thickness1Ozcopper thickness(Inner)1oZ
    Mounting TypeImmersion goldMin Hole Diameter0.2mm
    Minimum line width0.08mm(MLI)Min Line Space0.1MM
    ApplicationElectrical box

    Characteristic


    High Reliability,

    Six-layers impedance boards

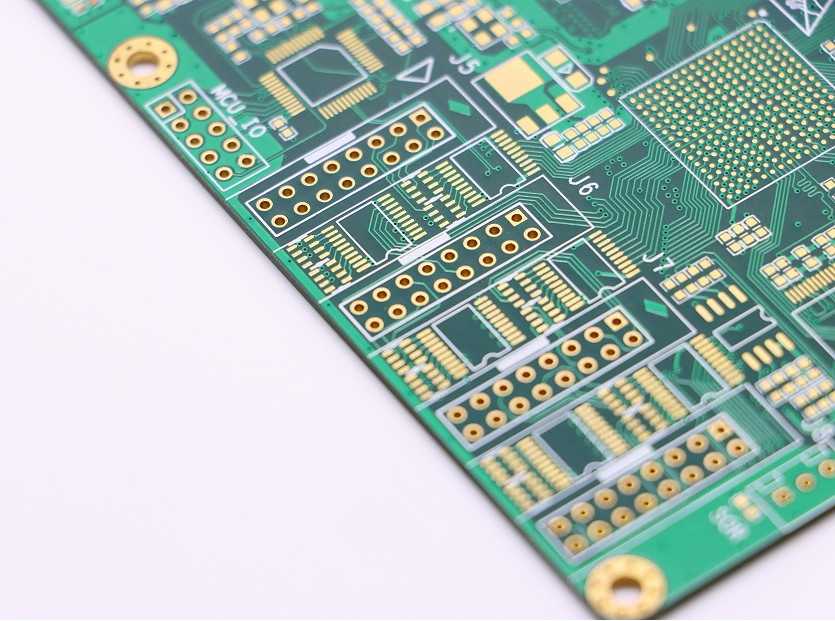

    Impedance PCB(Printed Circuit Board) for Electrical box images:

    1.6MM 1oz Impedance PCB Manufacturing Service1.6MM 1oz Impedance PCB Manufacturing Service

    Impedance PCB(Printed Circuit Board) for Electrical box shown details :


    1.6MM 1oz Impedance PCB Manufacturing Service1.6MM 1oz Impedance PCB Manufacturing Service1.6MM 1oz Impedance PCB Manufacturing Service1.6MM 1oz Impedance PCB Manufacturing Service

    Our circuits boards range from double layers to 24 layers. The product types include ordinary boards, medium and high Tg boards, involving special processes such as semi-hole, bonding, impedance, blue glue, carbon oil, gold fingers, blind gongs, buried blind holes , Countersunk holes, etc.; surface treatment can be ordinary tin spray, lead-free tin spray, immersion gold, electro-nickel gold, electro-hard gold, QSP, immersion silver, immersion tin or composite processes, etc.. products are widely used in smart electronics, communications Technology, power technology, industrial control, security engineering, automotive industry, medical control and optoelectronic engineering and other fields.


    Our PCB factory is fully qualified and has passed a series of certifications such as UL, ISO9001, ISO14001, ISO/TS16949, CQC and so on.


    Quote Requirement:


    *Gerber file of the bare PCB board.

    *BOM (Bill of material) for assembly.

    *To short the lead time, please kindly advise us if there is any acceptable components substitution.

    *Testing Guide & Test Fixtures if necessary.


    Welcome contact us for more informations,thank you!


    PCB Technical Specification
    Order Quantity1-500,000
    Layer1,2,4,6,up to 22 layers
    MaterialFR-4, glass epoxy, FR4 High Tg, Rohs compliant, Aluminum, Rogers, etc
    PCB typeRigid, flexible, rigid-flexible
    ShapeAny shape: Rectangular,round,slots,cutouts,complex,irregular, etc
    Max PCB dimensions20inch*20inch or 500mm*500mm
    Thickness0.4~4.0mm
    Thickness tolerance± 10%
    Copper thickness1/2OZ 1OZ 2OZ 3OZ
    Copper thickness tolerance± 0.25oz
    Surface finishHASL, Nickle, Imm Gold, Imm Tin, Imm Silver, OSP etc
    Solder maskGreen, red, white, yellow, blue, black, etc
    Silk screenWhite, yellow, black, or negative, etc
    Silk screen min line width0.006'' or 0.15mm
    Min drill hole diameter0.01'',0.25mm.or 10 mil
    Min trace/gap0.075mm or 3mil
    PCB cuttingShear,V-score,tab-routed
    Solder maskGreen, red, white, yellow, blue, black, etc
    Silk screenWhite, yellow, black, or negative, etc
    Silk screen min line width0.006'' or 0.15mm
    Min drill hole diameter0.01'',0.25mm.or 10 mil
    Min trace/gap0.075mm or 3mil
    PCB cuttingShear,V-score,tab-routed


    PCB Assembly Capabilities
    ItemTechnical Parameter
    SMT Jointing Min. Space0201mm
    QFP SpacePitch 0.3mm
    Min. Package0201
    Min. Size2*2 inch(50*50mm)
    Max. Size14*22 inch(350*550mm)
    Placement Precision±0.01mm
    Placement PrecisionQFP, SOP, PLCC, BGA
    Placement Capability0805, 0603, 0402, 0201

    PCB Lead time (workday(s)) Normally
    Single, Double-sided4 layer6 layerOver 8 layerHDI
    Sample Lead time (Normal)5-66-77-810-1210-12
    Sample Lead time (Faster)48-72 hours566-712
    Mass production lead time7-910-1213-151620
    PCB Assembly Lead time
    Sample Lead timePCB Fab+Components preparation +PCBA=15 workdays
    Mass production lead timePCB Fab+Components preparation +PCBA=21workdays
