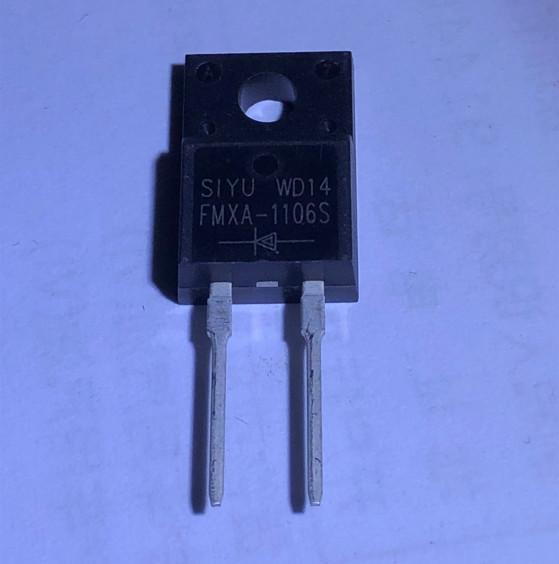

    FMXA-1106S Fast Recovery Diode 600V 10A Sanken Discrete Semiconductor Products

    Ask Lasest Price
    Brand Name : Sanken
    Model Number : FMXA-1106S
    Certification : ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union,PAYPAL
    Supply Ability : 50000PCS
    Delivery Time : 2-3DAYS
    • Product Details
    • Company Profile

    FMXA-1106S Fast Recovery Diode 600V 10A Sanken Discrete Semiconductor Products

    FMXA-1106S XA1106S fast recovery diode of 600V 10A Sanken Discrete Semiconductor Products


    FMXA-1106S fast recovery diode of 600V 10A Sanken Discrete Semiconductor Products


    Details: VRM = 600 V, IF(AV) = 10 A, trr = 28 ns Fast Recovery Diode FMXA-1106S

    Diode Standard 600 V 10A Through Hole TO-220F-2L


    Description:


    The FMXA-1106S is a fast recovery diode of 600 V /10 A.

    The maximum trr of 28 ns is realized by optimizing a life-time control.


    Features :
    ● VRM------------------------------------------------------ 600 V
    ● IF(AV)-------------------------------------------------------10 A
    ● VF--------------------------------------------------------1.98 V
    ● trr---------------------------------------------------------- 28 ns
    ● Bare Lead Frame: Pb-free (RoHS Compliant)
    ● Flammability: Equivalent to UL94V-0
    Applications
    ● PFC Circuit
    ● Freewheel Diode(Offline Buck and Buck-boost Converter)


    Specification :

    Part numberFMXA-1106S
    Specific device numberXA1106
    Category
    Discrete Semiconductor Products

    Diodes - Rectifiers - Single
    Mfr
    Sanken
    Series
    -
    Package
    Tube
    Part Status
    Obsolete
    Diode Type
    Standard
    Voltage - DC Reverse (Vr) (Max)
    600 V
    Current - Average Rectified (Io)
    10A
    Voltage - Forward (Vf) (Max) @ If
    1.9 V @ 10 A
    Speed
    Fast Recovery =< 500ns, > 200mA (Io)
    Reverse Recovery Time (trr)
    28 ns
    Current - Reverse Leakage @ Vr
    100 µA @ 600 V
    Capacitance @ Vr, F
    -
    Mounting Type
    Through Hole
    Package / Case
    TO-220-2 Full Pack
    Supplier Device Package
    TO-220F-2L
    Operating Temperature - Junction
    -40°C ~ 150°C

    FMXA-1106S Fast Recovery Diode 600V 10A Sanken Discrete Semiconductor Products


    NOTES:

    - Dimensions in millimeters - All the dimensions exclude mold flashes.

    - Bare lead frame: Pb-free (RoHS compliant)

    - When soldering the products, it is required to minimize the working time within the following limits:

    Flow: 260 ± 5 °C / 10 ± 1 s,

    2 times Soldering Iron: 380 ± 10 °C / 3.5 ± 0.5 s,

    1 time Soldering should be at a distance of at least 1.5 mm from the body of the product.


    FMXA-1106S Fast Recovery Diode 600V 10A Sanken Discrete Semiconductor ProductsFMXA-1106S Fast Recovery Diode 600V 10A Sanken Discrete Semiconductor Products
