S-80811CLNB-B7PT2U 1 Channel SC82AB Voltage Supervisor IC High Precision

Ask Lasest Price
Brand Name :	ABLIC
Model Number :	S-80811CLNB-B7PT2U
Price :	Negotiated
Payment Terms :	T/T, Western Union
Supply Ability :	12000PCS
Delivery Time :	1-3DAYS

Add to Cart

Product Details
Company Profile

S-80811CLNB-B7PT2U 1 Channel SC82AB Voltage Supervisor IC High Precision

S-80811CLNB-B7PT2U S-808xxC Series SUPER-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR SUPERVISOR 1 CHANNEL SC82AB IC

S-808xxC Series SUPER-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR SUPERVISOR 1 CHANNEL SC82AB IC --S-80811CLNB-B7PT2U

Features :

Super-low current consumption 1.3 mA typ. (detection voltage£1.4 V, at VDD = 1.5 V) 0.8 mA typ. (detection voltage³1.5 V, at VDD = 3.5 V)

High-precision detection voltage ±2.0%

Operating voltage range 0.65 V to 5.0 V (detection voltage£1.4 V) 0.95 V to 10.0 V (detection voltage³1.5 V)

Hysteresis characteristics 5% typ.

Detection voltage 0.8 V to 6.0 V (0.1 V step)

Output form Nch open-drain output (Active Low) CMOS output (Active Low)

Lead-free, Sn 100%, halogen-free*1

Applications:

Battery checkers

Power failure detectors

Power monitor for portable equipments such as pagers, calculators, electronic notebooks and remote controllers.

Constant voltage power monitor for cameras, video equipments and communication devices.

Power monitor for microcomputers and reset for CPUs.

Table 1 (1/2)

Detection

voltage range

Hysteresis width

(Typ.)

SC-82AB SOT-23-5 SOT-89-3

0.8 V2.0 % 0.034 V S-80808CNNB-B9MT2x  

0.9 V2.0 % 0.044 V S-80809CNNB-B9NT2x  

1.0 V2.0 % 0.054 V S-80810CNNB-B9OT2x  

1.1 V2.0 % 0.064 V S-80811CNNB-B9PT2x  

1.2 V2.0 % 0.073 V S-80812CNNB-B9QT2x  

1.3 V2.0 % 0.083 V S-80813CNNB-B9RT2x  

1.4 V2.0 % 0.093 V S-80814CNNB-B9ST2x  

1.5 V2.0 % 0.075 V S-80815CNNB-B8AT2x S-80815CNMC-B8AT2x S-80815CNUA-B8AT2x

1.6 V2.0 % 0.080 V S-80816CNNB-B8BT2x S-80816CNMC-B8BT2x S-80816CNUA-B8BT2x

1.7 V2.0 % 0.085 V S-80817CNNB-B8CT2x S-80817CNMC-B8CT2x S-80817CNUA-B8CT2x

1.8 V2.0 % 0.090 V S-80818CNNB-B8DT2x S-80818CNMC-B8DT2x S-80818CNUA-B8DT2x

1.9 V2.0 % 0.095 V S-80819CNNB-B8ET2x S-80819CNMC-B8ET2x S-80819CNUA-B8ET2x

2.0 V2.0 % 0.100 V S-80820CNNB-B8FT2x S-80820CNMC-B8FT2x S-80820CNUA-B8FT2x

2.1 V2.0 % 0.105 V S-80821CNNB-B8GT2x S-80821CNMC-B8GT2x S-80821CNUA-B8GT2x

2.2 V2.0 % 0.110 V S-80822CNNB-B8HT2x S-80822CNMC-B8HT2x S-80822CNUA-B8HT2x

2.3 V2.0 % 0.115 V S-80823CNNB-B8IT2x S-80823CNMC-B8IT2x S-80823CNUA-B8IT2x

2.4 V2.0 % 0.120 V S-80824CNNB-B8JT2x S-80824CNMC-B8JT2x S-80824CNUA-B8JT2x

2.4 V typ. 4.4  0.1 V^*1   S-80824KNUA-D2BT2x^*2

2.5 V2.0 % 0.125 V S-80825CNNB-B8KT2x S-80825CNMC-B8KT2x S-80825CNUA-B8KT2x

2.6 V2.0 % 0.130 V S-80826CNNB-B8LT2x S-80826CNMC-B8LT2x S-80826CNUA-B8LT2x

2.7 V2.0 % 0.135 V S-80827CNNB-B8MT2x S-80827CNMC-B8MT2x S-80827CNUA-B8MT2x

2.8 V2.0 % 0.140 V S-80828CNNB-B8NT2x S-80828CNMC-B8NT2x S-80828CNUA-B8NT2x

2.9 V2.0 % 0.145 V S-80829CNNB-B8OT2x S-80829CNMC-B8OT2x S-80829CNUA-B8OT2x

3.0 V2.0 % 0.150 V S-80830CNNB-B8PT2x S-80830CNMC-B8PT2x S-80830CNUA-B8PT2x

3.1 V2.0 % 0.155 V S-80831CNNB-B8QT2x S-80831CNMC-B8QT2x S-80831CNUA-B8QT2x

3.2 V2.0 % 0.160 V S-80832CNNB-B8RT2x S-80832CNMC-B8RT2x S-80832CNUA-B8RT2x

3.3 V2.0 % 0.165 V S-80833CNNB-B8ST2x S-80833CNMC-B8ST2x S-80833CNUA-B8ST2x

3.4 V2.0 % 0.170 V S-80834CNNB-B8TT2x S-80834CNMC-B8TT2x S-80834CNUA-B8TT2x

3.5 V2.0 % 0.175 V S-80835CNNB-B8UT2x S-80835CNMC-B8UT2x S-80835CNUA-B8UT2x

3.6 V2.0 % 0.180 V S-80836CNNB-B8VT2x S-80836CNMC-B8VT2x S-80836CNUA-B8VT2x

3.7 V2.0 % 0.185 V S-80837CNNB-B8WT2x S-80837CNMC-B8WT2x S-80837CNUA-B8WT2x

3.8 V2.0 % 0.190 V S-80838CNNB-B8XT2x S-80838CNMC-B8XT2x S-80838CNUA-B8XT2x

3.9 V2.0 % 0.195 V S-80839CNNB-B8YT2x S-80839CNMC-B8YT2x S-80839CNUA-B8YT2x

1.5 V2.0 % 0.075 V S-80815CNPF-B8ATFU S-80815CNY-n2-U

1.6 V2.0 % 0.080 V S-80816CNPF-B8BTFU S-80816CNY-n2-U

1.7 V2.0 % 0.085 V S-80817CNPF-B8CTFU S-80817CNY-n2-U

1.8 V2.0 % 0.090 V S-80818CNPF-B8DTFU S-80818CNY-n2-U

1.9 V2.0 % 0.095 V S-80819CNPF-B8ETFU S-80819CNY-n2-U

2.0 V2.0 % 0.100 V S-80820CNPF-B8FTFU S-80820CNY-n2-U

2.1 V2.0 % 0.105 V S-80821CNPF-B8GTFU S-80821CNY-n2-U

2.2 V2.0 % 0.110 V S-80822CNPF-B8HTFU S-80822CNY-n2-U

2.3 V2.0 % 0.115 V S-80823CNPF-B8ITFU S-80823CNY-n2-U

2.4 V2.0 % 0.120 V S-80824CNPF-B8JTFU S-80824CNY-n2-U

2.4 V typ. 4.4  0.1 V^*2  S-80824KNY-n2-U^*3

2.5 V2.0 % 0.125 V S-80825CNPF-B8KTFU S-80825CNY-n2-U

2.6 V2.0 % 0.130 V S-80826CNPF-B8LTFU S-80826CNY-n2-U

2.7 V2.0 % 0.135 V S-80827CNPF-B8MTFU S-80827CNY-n2-U

2.8 V2.0 % 0.140 V S-80828CNPF-B8NTFU S-80828CNY-n2-U

2.9 V2.0 % 0.145 V S-80829CNPF-B8OTFU S-80829CNY-n2-U

3.0 V2.0 % 0.150 V S-80830CNPF-B8PTFU S-80830CNY-n2-U

3.1 V2.0 % 0.155 V S-80831CNPF-B8QTFU S-80831CNY-n2-U

3.2 V2.0 % 0.160 V S-80832CNPF-B8RTFU S-80832CNY-n2-U

3.3 V2.0 % 0.165 V S-80833CNPF-B8STFU S-80833CNY-n2-U

3.4 V2.0 % 0.170 V S-80834CNPF-B8TTFU S-80834CNY-n2-U

3.5 V2.0 % 0.175 V S-80835CNPF-B8UTFU S-80835CNY-n2-U

3.6 V2.0 % 0.180 V S-80836CNPF-B8VTFU S-80836CNY-n2-U

3.7 V2.0 % 0.185 V S-80837CNPF-B8WTFU S-80837CNY-n2-U

3.8 V2.0 % 0.190 V S-80838CNPF-B8XTFU S-80838CNY-n2-U

3.9 V2.0 % 0.195 V S-80839CNPF-B8YTFU S-80839CNY-n2-U

4.0 V2.0 % 0.200 V S-80840CNPF-B8ZTFU S-80840CNY-n2-U

4.1 V2.0 % 0.205 V S-80841CNPF-B82TFU S-80841CNY-n2-U

4.2 V2.0 % 0.210 V S-80842CNPF-B83TFU S-80842CNY-n2-U

4.3 V2.0 % 0.215 V S-80843CNPF-B84TFU S-80843CNY-n2-U

4.4 V2.0 % 0.220 V S-80844CNPF-B85TFU S-80844CNY-n2-U

4.5 V2.0 % 0.225 V S-80845CNPF-B86TFU S-80845CNY-n2-U

4.6 V2.0 % 0.230 V S-80846CNPF-B87TFU S-80846CNY-n2-U

4.6 V0.10 V 0.10 V max.  S-80846KNY-n2-U^*4

4.7 V2.0 % 0.235 V S-80847CNPF-B88TFU S-80847CNY-n2-U

4.8 V2.0 % 0.240 V S-80848CNPF-B89TFU S-80848CNY-n2-U

4.9 V2.0 % 0.245 V S-80849CNPF-B9ATFU S-80849CNY-n2-U

5.0 V2.0 % 0.250 V S-80850CNPF-B9BTFU S-80850CNY-n2-U

5.1 V2.0 % 0.255 V S-80851CNPF-B9CTFU S-80851CNY-n2-U

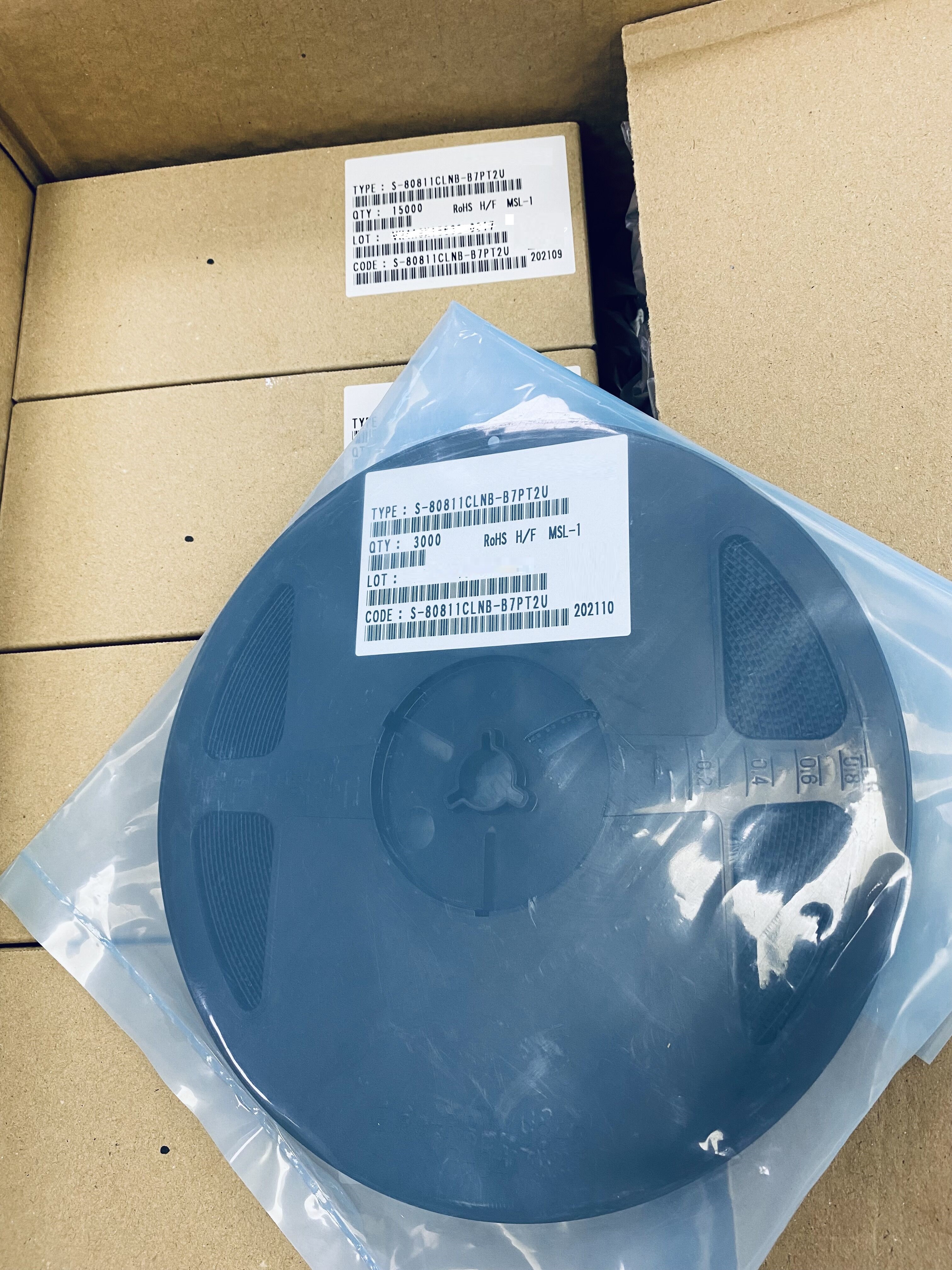

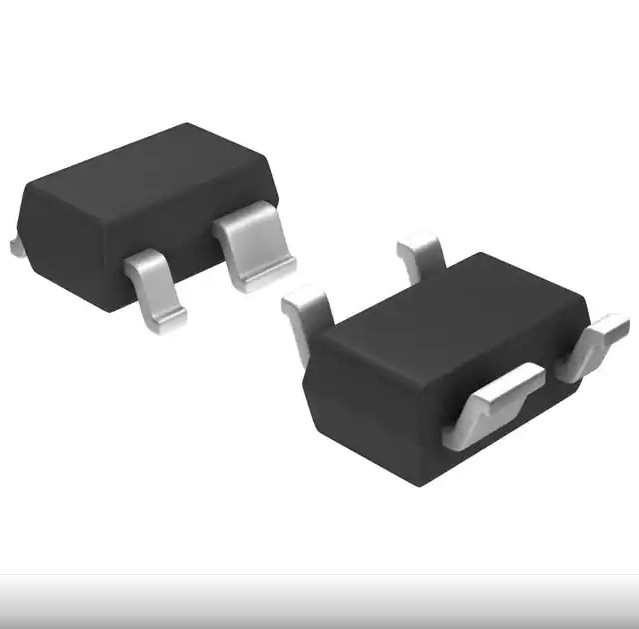

Image :

S-80811CLNB-B7PT2U 1 Channel SC82AB Voltage Supervisor IC High Precision
