74LVC74APW Nexperia IC Dual D-type flip-flop with set and reset positive-edge trigger 74LVC74A

Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-TSSOP (0.173", 4.40mm Width)

Description:

The 74LVC74A is a dual edge triggered D-type flip-flop with individual data (nD) inputs, clock (nCP) inputs, set (nSD) and (nRD) inputs, and complementary nQ and nQ outputs. The set and reset are asynchronous active LOW inputs and operate independently of the clock input. Information on the data input is transferred to the nQ output on the LOW-to-HIGH transition of the clock pulse. The nD inputs must be stable one set-up time prior to the LOW-to-HIGH clock transition, for predictable operation. Schmitt trigger action at all inputs makes the circuit highly tolerant of slower input rise and fall times.

Application:

• LED driver for LED chain module

• LCD backlighting

• Automotive motor management

• Hook switch for wired telecom

• Switch Mode Power Supply (SMPS)

Features :

• 5 V tolerant inputs for interlacing with 5 V logic

• Wide supply voltage range from 1.2 V to 3.6 V

• CMOS low power consumption

• Direct interface with TTL levels

• Complies with JEDEC standard:

• JESD8-7A (1.65 V to 1.95 V)

• JESD8-5A (2.3 V to 2.7 V)

• JESD8-C/JESD36 (2.7 V to 3.6 V)

• ESD protection:

• HBM JESD22-A114F exceeds 2000 V

• MM JESD22-A115-B exceeds 200 V

• CDM JESD22-C101E exceeds 1000 V

• Multiple package options

• Specified from -40 °C to +85 °C and -40 °C to +125 °C

Product Technical Specifications

Ordering information:

Related products :

Images:

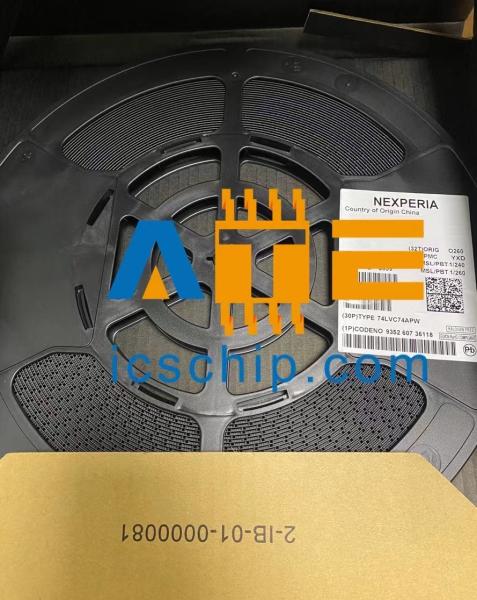

74LVC74APW :Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-TSSOP (0.173", 4.40mm Width)

74LVC74 SOIC14:
