    ASMT-UWB1-ZX3C2 Chip LED PLCC 2 SMD LED Indicator One White Surface Mount

    Ask Lasest Price
    Brand Name : Broadcom
    Model Number : ASMT-UWB1-ZX3C2
    Certification : ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 5000000pcs
    Delivery Time : 3-8DAYS
    • Product Details
    • Company Profile

    ASMT-UWB1-ZX3C2 Chip LED PLCC 2 SMD LED Indicator One White Surface Mount

    ASMT-UWB1-ZX3C2 Chip LED ASMT-UWB1-Zxxxx OneWhite Surface Mount PLCC-2 LED Indicator

    Appication:
    Non-automotive use
    • General Signage backlighting
    • Amusement machine backlighting
    • Industrial lighting • Light strips

    DESCRIPTION :
    This family of SMT LEDs is packaged in the industry standard PLCC-2 package.
    These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions.
    This high reliability feature makes them ideally suited to be used as interior signs application conditions.
    These LEDs are compatible with reflow soldering process.
    The wide viewing angle at 120° makes these LEDs ideally suited for panel, push button, offi ce equipment, industrial equipment,
    and home appliances.
    The fl at top emitting surface makes it easy for these LEDs to mate with light pipes.
    With the built-in refl ector pushing up the intensity of the light output,
    these LEDs are also suitable to be used as LED pixels in interior electronic signs.

    FEATURES:
    High reliability package with silicone encapsulation
    • Compatible with refl ow soldering process
    • High optical effi ciency with 100 lm/W
    • Available in 8 mm carrier tape with reel diameter 180mm
    • JEDEC MSL 3 product
    • ESD threshold of 1000 V (HBM model) per Jedec


    Specification:

    CategoryChip LED
    ColorWhite
    Intensity4500(Max) mcd
    LED MaterialInGaN
    Lens Shape TypeCircular
    Maximum Forward Current30 mA
    Maximum Forward Voltage per Color3.6 V
    Maximum Power Dissipation108 mW
    MSL LevelMSL 3 - 168 hours
    Number of LEDs1
    TypeUni-Color


    Related product number:

    Color Part number CCT Luminous Intensity (mcd) [1,2] Test Current Chip

    White ASMT-UWB1-ZX302 4500 ~ 8000 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX312 2700 ~ 4000 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3A2 8000 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3B2 6500 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3C2 5700 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3D2 5000 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3E2 4500 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3F2 4000 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3G2 3500 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3H2 3000 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZX3J2 2700 1800.00 3550.00 20 InGaN
    White ASMT-UWB1-ZAAB2 6500 2000.00 2500.00 20 InGaN
    White ASMT-UWB1-ZAAC2 5700 2000.00 2500.00 20 InGaN
    White ASMT-UWB1-ZAAD2 5000 2000.00 2500.00 20 InGaN
    White ASMT-UWB1-ZAAF2 4000 2000.00 2500.00 20 InGaN
    White ASMT-UWB1-ZAAH2 3000 2000.00 2500.00 20 InGaN
    White ASMT-UWB1-ZX702 4500 ~ 8000 2240.00 4500.00 20 InGaN
    White ASMT-UWB1-ZX7A2 8000 2240.00 4500.00 20 InGaN
    White ASMT-UWB1-ZX7B2 6500 2240.00 4500.00 20 InGaN
    White ASMT-UWB1-ZX7C2 5700 2240.00 4500.00 20 InGaN
    White ASMT-UWB1-ZX7D2 5000 2240.00 4500.00 20 InGaN
    White ASMT-UWB1-ZX7E2 4500 2240.00 4500.00 20 InGaN

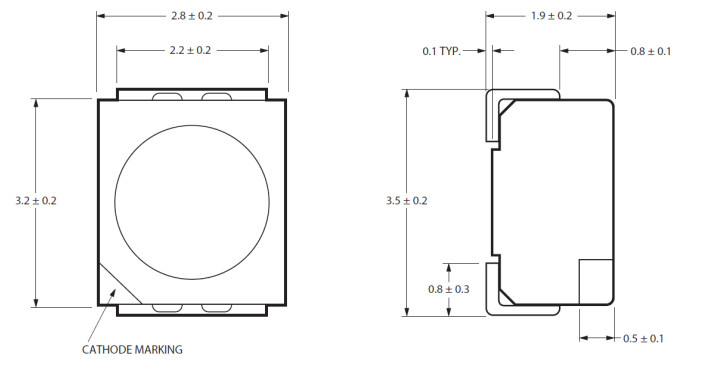

    Package Dimensions:

    ASMT-UWB1-ZX3C2 Chip LED PLCC 2 SMD LED Indicator One White Surface Mount

    ASMT-UWB1-ZX3C2 Chip LED ordering information:

    ASMT-UWB1-ZX3C2 Chip LED PLCC 2 SMD LED Indicator One White Surface Mount
    ASMT-UWB1-ZX3C2 Chip LED PLCC 2 SMD LED Indicator One White Surface MountASMT-UWB1-ZX3C2 Chip LED PLCC 2 SMD LED Indicator One White Surface Mount

    Environmental & Export Classifications
    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)1 (Unlimited)
    ECCNEAR99
    HTSUS8541.40.2000
