    MACP-009943-CH07F0 Macom 17dB Broadband Coupler For High Volume CATV Wired Broadband

    Ask Lasest Price
    Brand Name : Macom
    Model Number : MACP-009943-CH07F0
    Certification : ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 5000PCS
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    MACP-009943-CH07F0 Macom 17dB Broadband Coupler For High Volume CATV Wired Broadband

    MACP-009943-CH07F0 Macom 17dB broadband Coupler Ideally suited for high volume CATV wired Broadband


    Coupler 17dB 5 - 1000 MHz
    MACP-009943-CH07F0 is a 17dB broadband Coupler in a low cost, surface mount package. It offers low loss, good Isolation, good input/output matching and exceptional coupling repeatability. Ideally suited for high volume CATV/Broadband applications.
    Applications:
    Wired Broadband

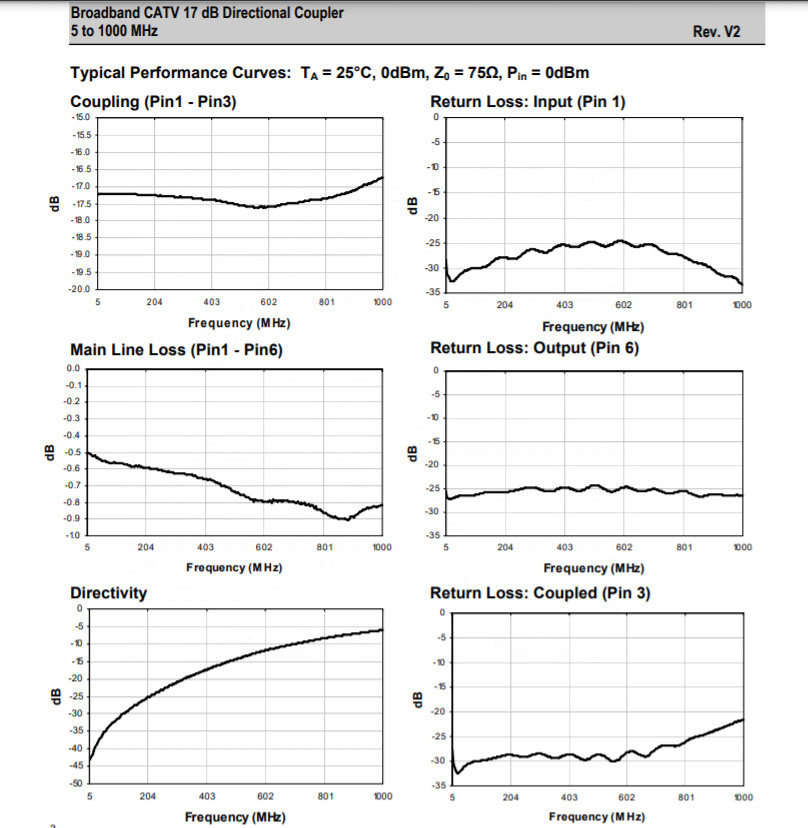

    Specifications:
    Min Frequency: 5 MHz
    Max Frequency: 1,000 MHz
    Coupling, Nominal: 17 dB
    Isolation: 37 dB
    Input Power: 24 dBm
    Insertion Loss: 0.6 dB
    Features:
    Surface Mount
    All Wires are Welded to the Substrate

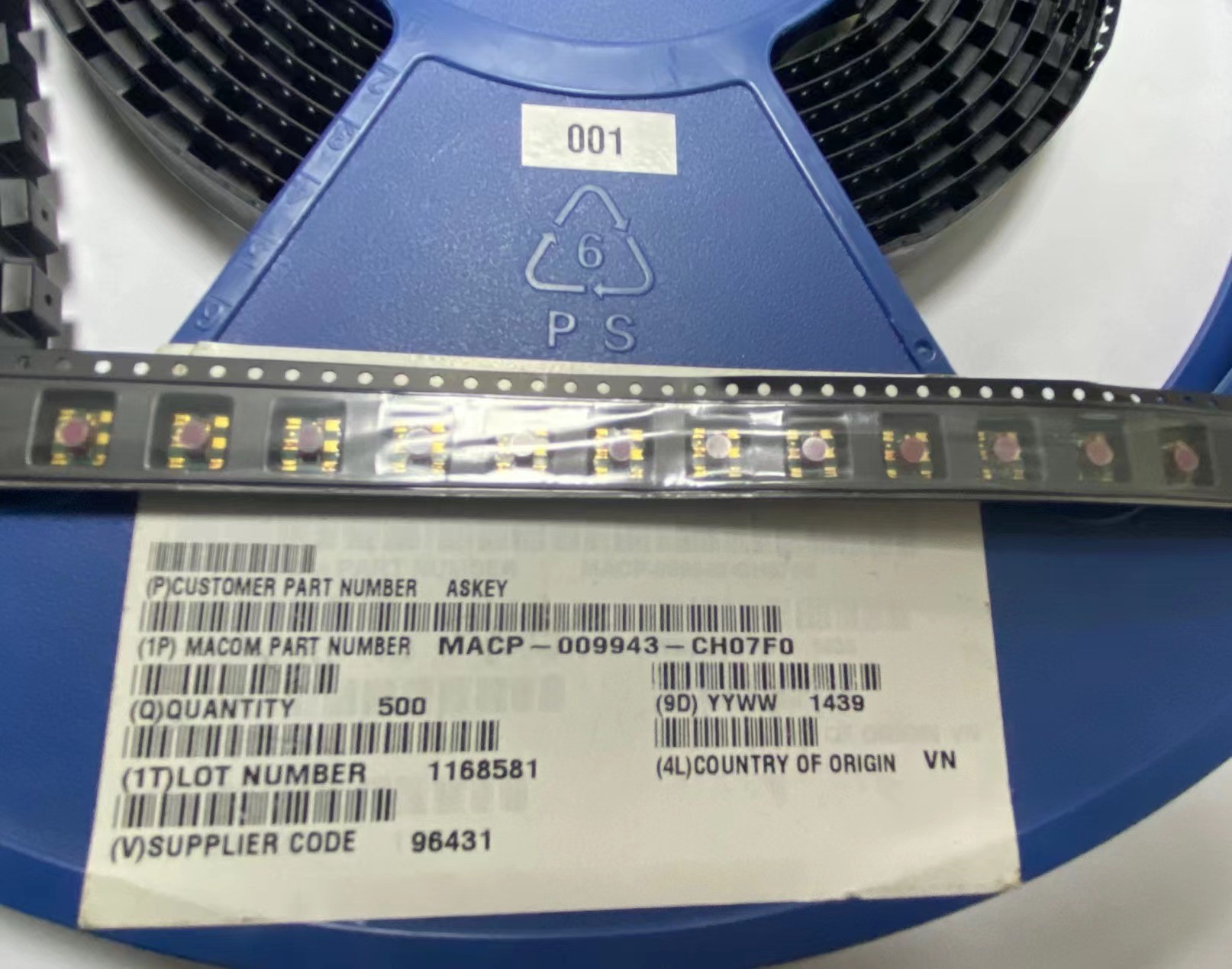

    Available on Tape and Reel
    RoHS* Compliant
    260°C Reflow Compatible
    Typical Coupling +17dB
    Lead Free
    MACP-009943-CH07F0 Macom 17dB Broadband Coupler For High Volume CATV Wired Broadband
    MACP-009943-CH07F0 Macom 17dB Broadband Coupler For High Volume CATV Wired Broadband
    MACP-009943-CH07F0 Macom 17dB Broadband Coupler For High Volume CATV Wired Broadband

    MACP-009943-CH07F0 Macom 17dB Broadband Coupler For High Volume CATV Wired Broadband


    Specifications"

    17dB broadband Coupler
    MACP-009943-CH07F0
    SM
    - 40 C
    + 85 C
    Reel
    Brand:MACOM
    Operating Temperature Range:- 40 C to + 85 C
    Subcategory:Filters
    Type:


    Environmental & Export Classifications

    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)3 (168 Hours)
    REACH StatusREACH Unaffected
    ECCNEAR99
    HTSUS8542.31.0001
