5005 5006 5016 Keystone Electronics THM THRU HOLE MOUNT TEST POINTS COLOR KEYED
Description:
• Color keyed for visibility and quick identification • Economical choice for PC test point terminations • Snap-fit mounting provides positive retention for wave soldering • Wire form loop for safe, non-slip testing • Space saving, ultra low and low profile designs • High profile design for difficult to reach applications • Suitable for high density packaging on .062 (1.57) and .093 (2.36) PC boards • Practical replacement for wire-wrap posts and turrets • Secure grip for J hooks, EZ hooks, grabbers, alligator clips, tips or probes • High temperature nylon base ideal for reflow soldering • Ideal for reliable production testing and field service troubleshooting
Category | Test and Measurement |
| TEST POINTS.pdf | Test Points |
Mfr | Keystone Electronics |
Series | THM |
Package | Bulk |
Product Status | Active |
Type | PC Test Point, Compact |
Mounting Type | 0.063" (1.60mm) Hole Diameter |
Color | Red |
Size / Dimension | 0.125" Dia x 0.220" L (3.18mm x 5.59mm) |
Height | - |
Plating | Silver |
Material - Insulation | Nylon 46, UL 94V-0 |
Material - Body | Phosphor Bronze |

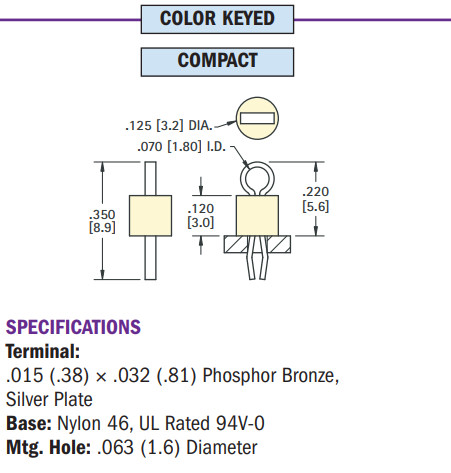

Specifications:
Terminal: .015 (.38) × .032 (.81) Phosphor Bronze, Silver Plate
Base: Nylon 46, UL Rated 94V-0
Mtg. Hole: .063 (1.6) Diameter
| Part number | Base Color |
| 5000 | Red |
| 5001 | BLACK |
| 5002 | WHITE |
| 5003 | ORANGE |
| 5004 | ORANGE |
| 5115 | BROWN |
| 5116 | GREEN |
| 5117 | BLUE |
| 5118 | GREY |
| 5119 | PURPLE |



Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
|
