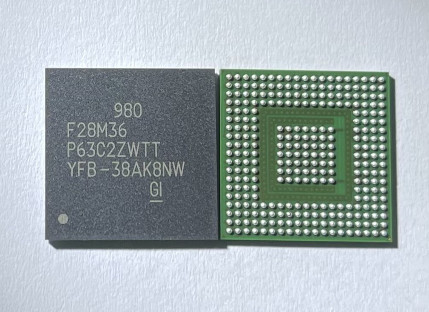

    F28M36P63C2ZWTT Texas Instrument IC C2000 REAL TIME MICROCONTROLLERS

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : F28M36P63C2ZWTT
    Certification : ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 5500PCS
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    F28M36P63C2ZWTT Texas Instrument IC C2000 REAL TIME MICROCONTROLLERS

    Texas Instruments (Electronic Components )

    F28M36P63C2ZWTT C2000 REAL-TIME MICROCONTROLLERS Texas instrument Integrated Circuits IC


    Features:


    The Concerto family is a multicore system-on-chip microcontroller unit (MCU) with independent communication and real-time control subsystems. The F28M36x family of devices is the second series in the Concerto family.


    The communications subsystem is based on the industry-standard 32-bit Arm Cortex-M3 CPU and features a wide variety of communication peripherals, including Ethernet 1588, USB OTG with PHY, Controller Area Network (CAN), UART, SSI, I2C, and an external interface.

    The real-time control subsystem is based on TI’s industry-leading proprietary 32-bit C28x floating-point CPU and features the most flexible and high-precision control peripherals, including ePWMs with fault protection, and encoders and captures—all as implemented by TI’s

    TMS320C2000™ Entry performance MCUs and Premium performance MCUs. In addition, the C28-CPU has been enhanced with the addition of the VCU instruction accelerator that implements efficient Viterbi, Complex Arithmetic, 16-bit FFTs, and CRC algorithms.


    A high-speed analog subsystem and supplementary RAM memory is shared, along with on-chip voltage regulation and redundant clocking circuitry. Safety considerations also include Error Correction Code (ECC), parity, and code secure memory, as well as documentation to assist with system-level industrial safety certification.


    • Specifications:
    CategoryIntegrated Circuits (ICs)
     Logic & voltage translation
    MfrTexas Instruments
    SeriesTransparent D-type Latches ICs
    PackageTray & Reel (TR)
    Part StatusActive
    PLLYes
    Main PurposeGeneral purpose
    Operating Temperature-40°C ~ 85°C
    Mounting TypeSurface Mount
    Package / CaseSOIC
    Product NumberSN54ABT16373A SN54ACT373 SN54ACT573
    Number of channels (#)16
    Technology FamilyABT
    Supply voltage (Min) (V)4.5
    Supply voltage (Max) (V)5.5
    Input typeTTL-Compatible CMOS
    Output type3-State
    Clock Frequency (Max) (MHz)150
    IOL (Max) (mA)64
    IOH (Max) (mA)-32
    ICC (Max) (uA)89000
    FeaturesVery high speed (tpd 5-10ns), Partial power down (Ioff), Power up 3-state, Flow-through pinout

    Features for the F28M36P63C2:


    Master Subsystem — Arm® Cortex®-M3
    125 MHz
    Embedded memory
    Up to 1MB of flash (ECC)
    Up to 128KB of RAM (ECC or parity)
    Up to 64KB of shared RAM
    2KB of IPC Message RAM
    Five Universal Asynchronous Receiver/Transmitters (UARTs)
    Four Synchronous Serial Interfaces (SSIs)
    and a Serial Peripheral Interface (SPI)
    Two Inter-integrated Circuits (I2Cs)
    Universal Serial Bus On-the-Go (USB-OTG) + PHY
    10/100 ENET 1588 MII
    Two Controller Area Network, D_CAN, modules (pin-bootable)
    32-channel Micro Direct Memory Access (µDMA)
    Dual security zones (128-bit password per zone)
    External Peripheral Interface (EPI)
    Micro Cyclic Redundancy Check (µCRC) module
    Four general-purpose timers
    Two watchdog timer modules
    Three external interrupts
    Endianness: little endian
    Clocking
    On-chip crystal oscillator and external clock input
    Dynamic Phase-Locked Loop (PLL) ratio changes supported
    1.2-V digital, 1.8-V analog, 3.3-V I/O design
    Interprocessor Communications (IPC)
    32 handshaking channels
    Four channels generate IPC interrupts
    Can be used to coordinate transfer of data through IPC Message RAMs
    Up to 142 individually programmable, multiplexed General-Purpose Input/Output (GPIO) pins
    Glitch-free I/Os
    Control Subsystem — TMS320C28x 32-bit CPU
    150 MHz
    C28x core hardware built-in self-test
    Embedded memory
    Up to 512KB of flash (ECC)
    Up to 36KB of RAM (ECC or parity)
    Up to 64KB of shared RAM
    2KB of IPC Message RAM
    IEEE-754 single-precision Floating-Point Unit (FPU)
    Viterbi, Complex Math, CRC Unit (VCU)
    Serial Communications Interface (SCI)
    SPI
    I2C
    6-channel Direct Memory Access (DMA)
    12 Enhanced Pulse Width Modulator (ePWM) modules
    24 outputs (16 high-resolution)
    Six 32-bit Enhanced Capture (eCAP) modules
    Three 32-bit Enhanced Quadrature Encoder Pulse (eQEP) modules
    Multichannel Buffered Serial Port (McBSP)
    EPI
    One security zone (128-bit password)
    Three 32-bit timers
    Endianness: little endian
    Analog Subsystem
    Dual 12-bit Analog-to-Digital Converters (ADCs)
    Up to 2.88 MSPS
    Up to 24 channels
    Four Sample-and-Hold (S/H) circuits
    Up to six comparators with 10-bit Digital-to-Analog Converter (DAC)
    Package
    289-ball ZWT New Fine Pitch Ball Grid Array (nFBGA)
    Temperature options:
    T: –40ºC to 105ºC Junction
    S: –40ºC to 125ºC Junction

      More popular Texas Instruments IC:


      Base Part NumberMFG Part NumberManufacturer
      TMS320C28341TMS320C28341ZAYTTexas Instruments
      TMS320C28342TMS320C28342ZFETTexas Instruments
      TMS320C28343TMS320C28343ZAYTTexas Instruments
      TMS320C28343-Q1TMS320C28343ZFEQTexas Instruments
      TMS320C28345TMS320C28345ZAYTTexas Instruments
      TMS320C28345TMS320C28345ZFETTexas Instruments
      TMS320C28346TMS320C28346ZFETTexas Instruments
      TMS320C28346TMS320C28346ZFETRTexas Instruments
      TMS320C28346-Q1TMS320C28346ZFEQTexas Instruments
      TMS320F280021F280021PTSRTexas Instruments
      TMS320F280021-Q1F280021PTQRTexas Instruments
      TMS320F280023F280023PMSRTexas Instruments
      TMS320F280023F280023PNSRTexas Instruments
      TMS320F280023F280023PTSRTexas Instruments
      TMS320F280023-Q1F280023PMQRTexas Instruments
      TMS320F280023-Q1F280023PNQRTexas Instruments
      TMS320F280023-Q1F280023PTQRTexas Instruments
      TMS320F280023CF280023CPMSRTexas Instruments
      TMS320F280023CF280023CPNSRTexas Instruments
      TMS320F280023CF280023CPTSRTexas Instruments
      TMS320F280025F280025PMSTexas Instruments
      TMS320F280025F280025PMSRTexas Instruments
      TMS320F280025F280025PNSTexas Instruments
      TMS320F280025F280025PNSRTexas Instruments
      TMS320F280025F280025PTSTexas Instruments
      TMS320F280025F280025PTSRTexas Instruments
      TMS320F280025-Q1F280025PMQRTexas Instruments
      TMS320F280025-Q1F280025PNQRTexas Instruments
      TMS320F280025-Q1F280025PTQRTexas Instruments
      TMS320F280025CF280025CPMSTexas Instruments
      TMS320F280025CF280025CPMSRTexas Instruments
      TMS320F280025CF280025CPNSRTexas Instruments
      TMS320F280025CF280025CPTSRTexas Instruments
      TMS320F280025C-Q1F280025CPMQRTexas Instruments
      TMS320F280025C-Q1F280025CPNQRTexas Instruments
      TMS320F280025C-Q1F280025CPTQRTexas Instruments
      TMS320F280040-Q1F280040PMQRTexas Instruments
      TMS320F280040C-Q1F280040CPMQRTexas Instruments
      TMS320F280041F280041PMSTexas Instruments
      TMS320F280041F280041PMSRTexas Instruments
      TMS320F280041F280041PZSTexas Instruments
      TMS320F280041F280041PZSRTexas Instruments
      TMS320F280041F280041RSHSRTexas Instruments
      TMS320F280041-Q1F280041PZQRTexas Instruments
      TMS320F280041CF280041CPMSTexas Instruments
      TMS320F280041CF280041CPZSTexas Instruments
      TMS320F280041CF280041CRSHSRTexas Instruments
      TMS320F280041C-Q1F280041CPZQRTexas Instruments
      TMS320F280045F280045PMSTexas Instruments
      TMS320F280045F280045PMSRTexas Instruments
      TMS320F280045F280045PZSTexas Instruments
      TMS320F280045F280045PZSRTexas Instruments
      TMS320F280045F280045RSHSRTexas Instruments
      TMS320F280048-Q1F280048PMQRTexas Instruments
      TMS320F280048C-Q1F280048CPMQRTexas Instruments
      TMS320F280049F280049PMSTexas Instruments
      TMS320F280049F280049PMSRTexas Instruments
      TMS320F280049F280049PZSRTexas Instruments
      TMS320F280049F280049RSHSRTexas Instruments
      TMS320F280049-Q1F280049PZQTexas Instruments
      TMS320F280049-Q1F280049PZQRTexas Instruments
      TMS320F280049CF280049CPMSTexas Instruments
      TMS320F280049CF280049CPZSTexas Instruments
      TMS320F280049CF280049CRSHSRTexas Instruments
      TMS320F280049C-Q1F280049CPZQRTexas Instruments
      TMS320F2801TMS320F2801NMFATexas Instruments
      TMS320F2801TMS320F2801PZATexas Instruments
      TMS320F2801TMS320F2801PZA-60Texas Instruments
      TMS320F2801TMS320F2801PZSTexas Instruments
      TMS320F2801-Q1TMS320F2801PZQTexas Instruments
      TMS320F28015TMS320F28015NMFATexas Instruments
      TMS320F28015TMS320F28015PZATexas Instruments
      TMS320F28015TMS320F28015PZSTexas Instruments
      TMS320F28015-Q1TMS320F28015PZQTexas Instruments
      TMS320F28016TMS320F28016PZATexas Instruments
      TMS320F28016TMS320F28016PZSTexas Instruments
      TMS320F2802TMS320F2802PZATexas Instruments
      TMS320F2802TMS320F2802PZA-60Texas Instruments
      TMS320F2802TMS320F2802PZSTexas Instruments
      TMS320F2802-Q1TMS320F2802PZQTexas Instruments
      TMS320F28020TMS320F28020DASTexas Instruments
      TMS320F28020TMS320F28020DATTexas Instruments
      TMS320F28020TMS320F28020PTSTexas Instruments
      TMS320F28020TMS320F28020PTTTexas Instruments
      TMS320F280200TMS320F280200DASTexas Instruments
      TMS320F280200TMS320F280200DATTexas Instruments
      TMS320F280200TMS320F280200PTTTexas Instruments
      TMS320F28021TMS320F28021DATTexas Instruments
      TMS320F28021TMS320F28021PTSTexas Instruments
      TMS320F28021TMS320F28021PTTTexas Instruments
      TMS320F28022TMS320F28022DASTexas Instruments
      TMS320F28022TMS320F28022DATTexas Instruments
      TMS320F28022TMS320F28022PTSTexas Instruments
      TMS320F28022TMS320F28022PTTTexas Instruments
      TMS320F28022-Q1TMS320F28022DAQTexas Instruments
      TMS320F28022-Q1TMS320F28022PTQTexas Instruments
      TMS320F28023TMS320F28023DASTexas Instruments
      TMS320F28023TMS320F28023DATTexas Instruments
      TMS320F28023TMS320F28023PTSTexas Instruments
      TMS320F28023TMS320F28023PTTTexas Instruments
      TMS320F28023-Q1TMS320F28023DAQTexas Instruments
      TMS320F28023-Q1TMS320F28023PTQTexas Instruments
      TMS320F280230TMS320F280230PTTTexas Instruments
      TMS320F28026TMS320F28026DASTexas Instruments
      TMS320F28026TMS320F28026DATTexas Instruments
      TMS320F28026TMS320F28026PTSTexas Instruments
      TMS320F28026TMS320F28026PTTTexas Instruments
      TMS320F28026-Q1TMS320F28026DAQTexas Instruments
      TMS320F28026-Q1TMS320F28026PTQTexas Instruments
      TMS320F280260TMS320F280260PTTTexas Instruments
      TMS320F28026FTMS320F28026FPTTTexas Instruments
      TMS320F28027TMS320F28027DASTexas Instruments
      TMS320F28027TMS320F28027DASRTexas Instruments
      TMS320F28027TMS320F28027DATTexas Instruments
      TMS320F28027TMS320F28027PTRTexas Instruments
      TMS320F28027TMS320F28027PTSTexas Instruments
      TMS320F28027TMS320F28027PTTTexas Instruments
      TMS320F28027-Q1TMS320F28027DAQTexas Instruments
      TMS320F28027-Q1TMS320F28027PTQTexas Instruments
      TMS320F280270TMS320F280270PTSTexas Instruments
      TMS320F280270TMS320F280270PTTTexas Instruments
      TMS320F28027FTMS320F28027FPTTTexas Instruments
      TMS320F28027FTMS320F28027FPTTRTexas Instruments
      TMS320F28027F-Q1TMS320F28027FPTQTexas Instruments


      Environmental & Export Classifications:

      ATTRIBUTEDESCRIPTION
      RoHS StatusROHS3 Compliant
      Moisture Sensitivity Level (MSL)3 (168 Hours)
      REACH StatusREACH Unaffected
      ECCNEAR99
      HTSUS8542.39.0001
