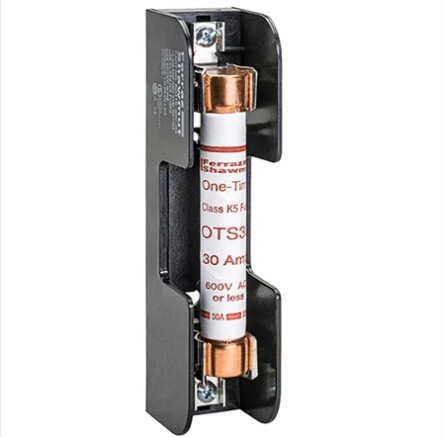

    OTS30 OTS Class K5 Fast-Acting fuse Power fuse

    OTS Class K5 Fast-Acting fuse 600VAC 300VDC 30A OTS30


    Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 30A Ferrule Amp-Trap

    One-Time OTS general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings. OTS fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses.


    Applications:

    Feeders
    Branch circuits
    Resistive heating
    Residential and small commercial installations


    Description: OTS30

    Item numberOTS30
    DescriptionFuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 30A Ferrule Amp-Trap
    Rated voltage AC UL600 V
    Rated voltage DC UL300 V
    Frequency (Hz)50/60 Hz
    Ampere Rating30 A
    ROHS CompliantYes
    AC or DCAC/DC
    Fuse ClassClass K5
    Speed/CharacteristicFast-Acting
    MountingClip
    AC Max I.R./Breaking Capacity: I150 kA
    Connection/Terminal MaterialCopper
    Connection/Terminal TypeFerrule
    Product Diameter20.6 mm
    Product Length127 mm
    Sell Pack Width104.6 mm
    Sell Pack Length130 mm
    Sell Pack Height44.4 mm
    Product groupLow Voltage UL/CSA Fuses
    Body/Insulating MaterialPaper
    Product Weight0.0499 kg

    More Part number for available:

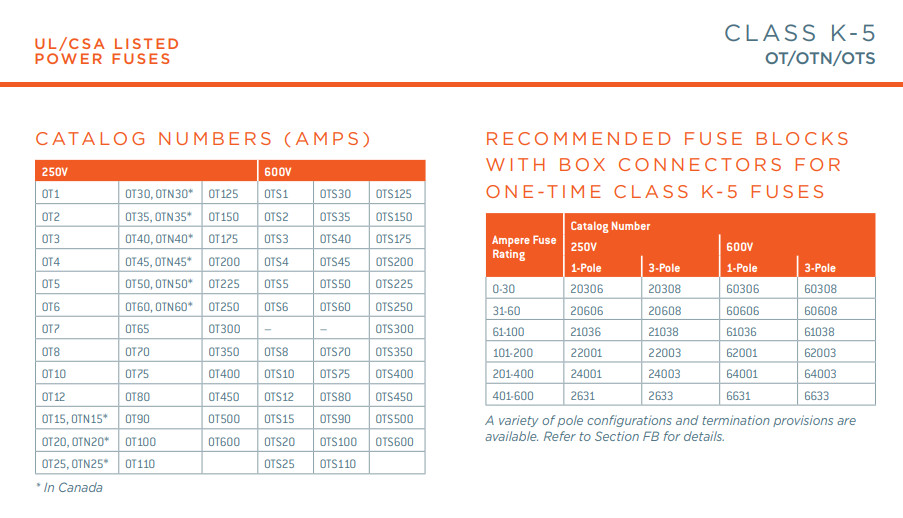

    OTS6 OTS1 OTS25 OTS30 OTS40 OTS50 OTS60 OTS70 OTS80 OTS90 OTS100 OTS200 OTS300 OTS350 OTS35 OTS400 OTS150 OTS20 OTS25 OTS100 OTS40 OTS5 one-Time FUSE

    Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 30A Ferrule Amp-Trap fuse Specification:


    OTS30 OTS Class K5 Fast-Acting fuse Power fuseOTS30 OTS Class K5 Fast-Acting fuse Power fuseOTS30 OTS Class K5 Fast-Acting fuse Power fuseOTS30 OTS Class K5 Fast-Acting fuse Power fuse


    Most Simlar fuses

    OT6 OT1 OT25 OT30 OT40 OT50 OT60 OT70 OT80 OT90 OT100 OT200 OT300 OT350 OT35 OT400 OT150 OT20 OT25 OT100 OT40 OT5

    OTN6 OTN1 OTN25 OTN30 OTN40 OTN50 OTN60 OTN70 OTN80 OTN90 OTN100 OTN200 OTN300 OTN350 OTN35 OTN400 OTN150 OTN20 OTN25 OTN100 OTN40 OTN5

    OTS6 OTS1 OTS25 OTS30 OTS40 OTS50 OTS60 OTS70 OTS80 OTS90 OTS100 OTS200 OTS300 OTS350 OTS35 OTS400 OTS150 OTS20 OTS25 OTS100 OTS40 OTS5
