    ECLAMP2410 Semtech EMI RFI Filters

    ECLAMP2410CPT FILTER RC(PI) 45 OHM/12PF SMD16 For T-FLASH MICROSD INTERFACES


    Applications:For T-FLASH MICROSD INTERFACES
    T-Flash / MicroSD Interfaces
    MMC Interfaces
    CDMA, GSM, 3G Cell Phones


    The EClampM2410P is a combination EMI filter and line termination device with integrated TVS diodes for use on Multimedia Card interfaces.
    This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical char-acteristics.
    They have been optimized for protection of T-Flash/MicroSD interfaces in cellular phones and other portable electronics.
    The device consists of six circuits that include series im-pedance matching resistors and pull up resistors as re-quired by the SD specification. TVS diodes are included on each line for ESD protection. An additional TVS diode connection is included for protection of the voltage (Vdd) bus. Termination resistor value of 45 Ohms is included on the DATO, DAT1, DAT2, DAT3, CMD, and CLK lines.Pull up resistors of 15k Ohms are included on DATO,DAT1, DAT2, and CMD lines while a 50k Ohm pull up is inlcuded on the DAT3 line. These may be configured for devices operating in SD or SPI mode . The TVS diodes provide effective suppression of ESD voltages in excess of +15kV (air discharge) and +8kV (contact discharge) per IEC 61000-4-2, level 4.

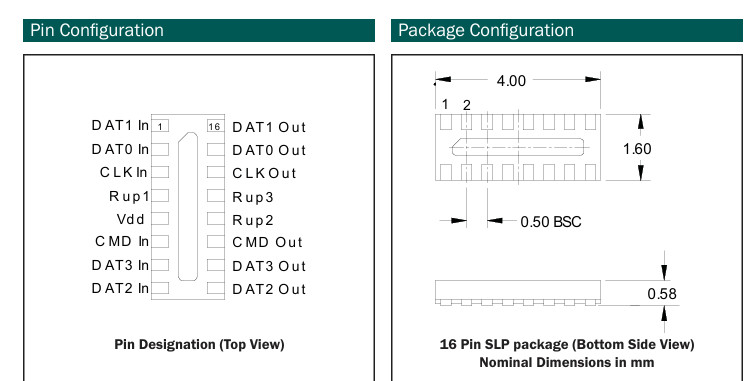

    The EClamp2410P is in a 16-pin, RoHS/WEEE compliant, SLP4016P16 package. It measures 4.0x 1.6 x 0.58mm. The leads are spaced at a pitch of 0.5mm and are fin-ished with lead-free NiPd.


    ECLAMP2410 Semtech EMI RFI Filters


    Environmental & Export Classifications


    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)1 (Unlimited)
    ECCNEAR99
    HTSUS8541.60.0060
