LPC50 - LPC800 Linear Potentiometer Long Stroke Series LPC500D5KCH2 for machine manufacturing industry

LPC50 - LPC800 Linear Potentiometer Long Stroke Series LPC500D5KCH2 for machine manufacturing industry


LPC Linear Potentiometer Long Stroke Series 50 - 800 mm Part numbers:


LPC50
LPC100
LPC125
LPC130
LPC150
LPC175
LPC200
LPC225
LPC250
LPC275
LPC300
LPC325
LPC 350
LPC 375
LPC 400
LPC 450
LPC 500
LPC 550
LPC 600
LPC 650
LPC 700
LPC 800


Description:

Measurement stroke50 - 800 mm
Repeatability< 0.01 mm
ResolutionInfinite
Permissible applied voltage28 VDC max.

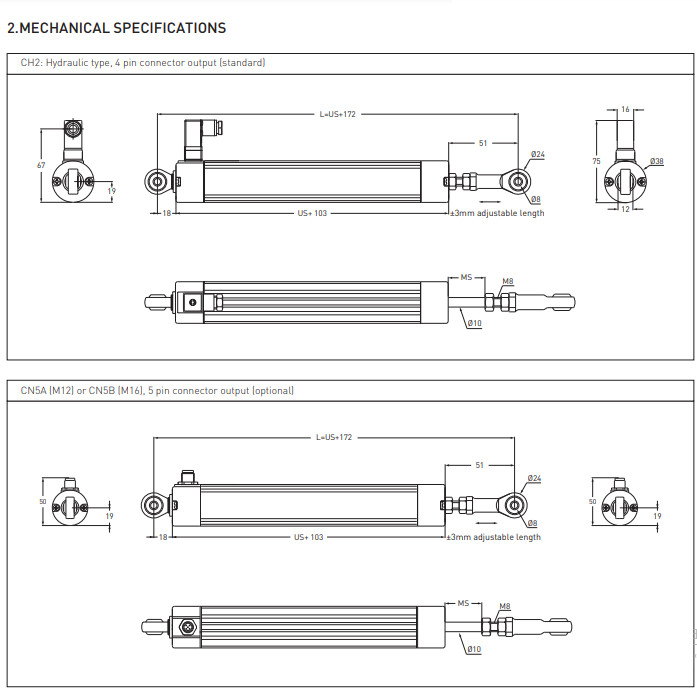

Electrical connectionsCH2:Hydraulic type, 4 pin connector output (standard)
CN5A (M12) or CN5B (M16), 5 pin connector output (optional)

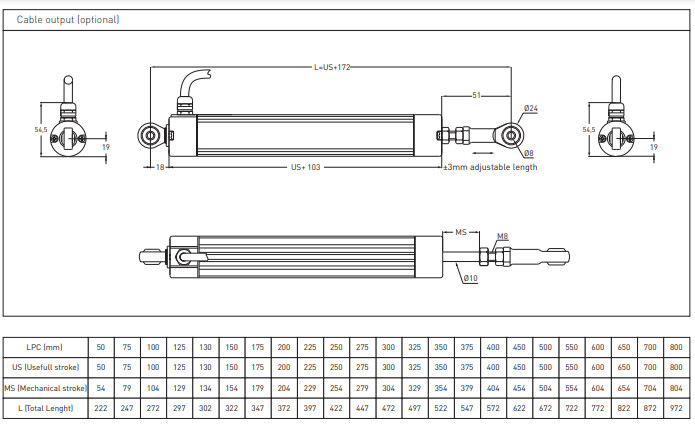

Cable output (optional)
Displacement speed< 5 m/s
Mechanical life100 million movement
Protection levelIP 65
VibrationEN 60068-2-6
5-2000 Hz
200 m/s2 (20g)
2h 30min each axis (x,y,z)
ShockEN 60068-2-2:2007
11ms. (x,y,z axis)
Resistance5 kOhm: 50 - 600 mm
10 kOhm: 650 - 800 mm
Resistance tolerance± %20
Load resistance100 kOhm min.
Recommended wiper current<1 UA
LinearityA: ±%0.5 (≤75 mm)
B: ±%0.2 (100 - 125 mm)
C: ±%0.1 (130 - 225 mm)
D: ±%0.05 (≥250 mm)
Case dimensions38 mm
Case materialAnodized aluminium
Caps materialABS Plastic
Rod material Stainless steelAISI 303
Rod diameter10 mm
Mechanical fixingBall joints on the both sides (plastic)
Operating temperature-20°C ... +80°C
Storage temperature-30°C ... +90°C
