9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

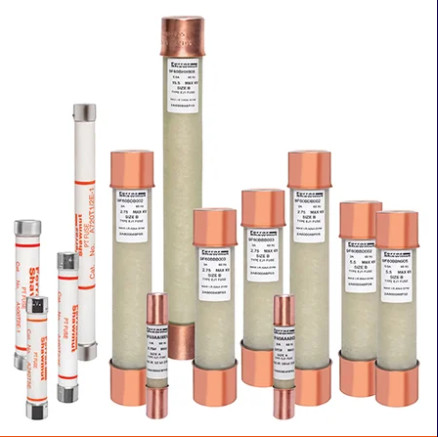

Mersen Ferraz Shawmut Fuse 9F60 Series 0.625kV to 15.5 kV PT Fuses Primary protection for potential transformers (PT) or control power transformers (CPT)


Applications:

Primary protection for potential transformers (PT) or control power transformers (CPT)


Description:

PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 10A


Features/Benefits:

Ferrule mounting for standard clips and interchangeability with other brands of fuses
Current-limiting for superior equipment protection
Non-venting for silent operation
Metal embossed catalog number and manufacturing date for lasting identification
Blown-fuse indicator to give positive identification of open fuse fuse is available on the 9F60 series


Highlights:

Parts numberAmpere ratingIndication SystemProduct Weight
9F60AAA0033ANo0.1134kg
9F60AAA0055ANo0.1134kg
9F60AAA0077ANo0.1134kg
9F60AAA01010ANo0.1134kg
9F60AAB0011ANo0.127kg
9F60AAB0022ANo0.127kg
9F60BBB0011AYes0.6804kg
9F60BBB0022AYes0.6804kg
9F60BBB0033AYes0.6804kg
9F60BBD0011AYes0.6804kg

Technical Specifications:

Frequency (Hz)50/60 Hz
Amperage Range1/2 to 10 A
Reach CompliantYes
Max Operating Temp.80 °C
Max Storage Temp.80 °C
Min Storage Temp.-25 °C
Harmonized System853510

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

More Simlar PT FUSES:


E RATINGCATALDG NUMBER
2400V4800V5000V7200V
1/2EA240T1/2EA4B0T1/2EA500T1/2E-1A720T12E-1
1EA240T1EA4B0T1EA500T1E-1A720T1E-1
2EA240T2EA4BOT2EA500T2E-1A720T2E-1
3E A480T3EA500T3E-1A720T3E-1
4E A4B0T4EA500T 4E-1
5EA240TSEA4BOTSEA500T5E-1

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses

9F60AAA003 9F60AAA005 9F60AAA007 9F60AAA010 9F60AAB001 9F60AAB002 9F60BBB001 9F60BBB002 9F60BBB003 9F60BBD001 Ferraz Shawmut/Mersen PT fuses


Environmental & Export Classifications


ATTRIBUTEDESCRIPTION
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
ECCNEAR99
HTSUS8541.60.0060

More Simlar Form 101 Semiconductor Protection fuses

A150X10-4 A150X45-4 A150X125-4 A150X450-4
A150X15-4 A150X50-4 A150X150-4 A150X500-4
A150X20-4 A150X60-4 A150X175-4 A150X600-4
A150X25-4 A150X70-4 A150X200-4 A150X800-4
A150X30-4 A150X80-4 A150X250-4 A150X1000-4
A150X35-4 A150X90-4 A150X300-4 A150X400
A150X40-4 A150X100-4 A150X400-4 A150X800-4
A150X1-1 A150X15-1 A150X20-1 A150X30-1 A150X1000-4 A150X125-3C
