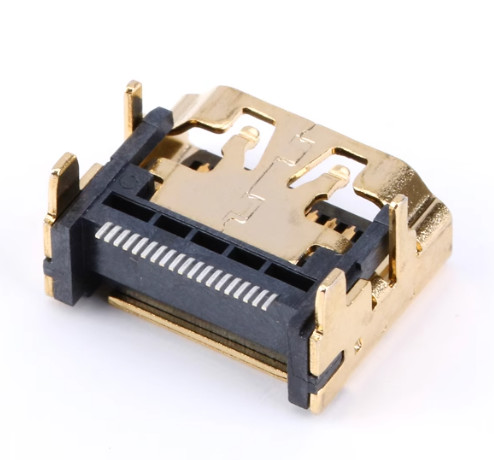

    10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE

    High-Definition Multimedia Interface connector HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE 10029449-111RLF


    HDMI connectors follow industry standards and are available in vertical or right angle orientations. Single or dual port versions are available. These deliver high speed video transmissions resulting in very high resolution images.
    10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE
    10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE

    HDMI CONNECTOR

    An HDMI (High-Definition Multimedia Interface) connector is a fully digital audio/video standard and interface for transmitting encrypted streams consisting of uncompressed video data and compressed or uncompressed audio data.


    TYPES OF HDMI CONNECTORS

    There are currently five types of HDMI connectors.

    Type A: Is the most common; it consists of 19 pins and is sufficient to display in 1080p with multi-channel sound.

    Type B: Is compatible with Dual-link DVI which doubles the bandwidth on a type A cable. Is allow transfers of up to 20.4 Gbit / s.

    Type C: Also called mini-HDMI, type C (10.42 mm × 2.42 mm) is a compact version of type A (also having 19 pins) specially intended for camcorders, digital cameras, touch pads.

    Type D: Also called micro-HDMI, type D is even more compact (6.4 mm × 2.8 mm) and is found on some tablets, ultrabook type laptops and smartphones.

    Type E: An automotive connection system which features a locking tab to prevent the cable from slackening and a shell to prevent moisture and dirt interfering with signals.

    10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE

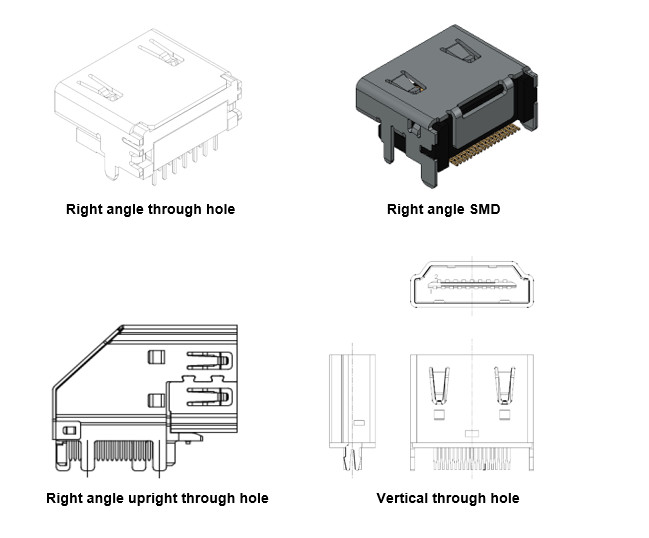

    ENGINEERING OPTIONS

    Various options are available for an HDMI connector which include right angle, right angle upright, and vertical mating orientation. Through hole and surface mounted (SMD) contact tail types are available for cable or board mounting.

    10029449-111RLF HDMI connectors HDMI 19 PINS RECEPTACLES SMT TYPE A RIGHT ANGLE


    Environmental & Export Classifications

    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)Not Applicable
    ECCNEAR99
    HTSUS8536.69.4040
